What the heck does this plug go to?

Thread Tools

Search this Thread

Old 05-26-2009, 11:36 AM
  #1
Registered User
Thread Starter

RealQuick's Avatar

Join Date: Feb 2002
Location: Bridgewater, MA
Posts: 5,645
What the heck does this plug go to?
There is a plug that is broken, and has 4 wires (they appear to be pink, brown, purple, and black). one or two may have a stripe on them, but I was just trying to identify the major colors.

It comes off the harness where the starter wires come off of as well (under pass side motor mount). The connector I believe was configured like a square (2 x 2) in stead of 4x1. I can post pics tonight, but what the heck does it go? I do not see the mating piece anywhere?

I can post pics tonight.
RealQuick is offline
Reply
Old 05-26-2009, 11:54 AM
  #2
Registered User

form94's Avatar

Join Date: May 2005
Location: Wisconsin
Posts: 141
Sounds like your talking about the 02 sensor plug. Thats a 4 wire plug but it has tan,blk,purple,and brown.
form94 is offline
Reply
Old 05-26-2009, 11:59 AM
  #3
Registered User
Thread Starter

RealQuick's Avatar

Join Date: Feb 2002
Location: Bridgewater, MA
Posts: 5,645
Originally Posted by form94
Sounds like your talking about the 02 sensor plug. Thats a 4 wire plug but it has tan,blk,purple,and brown.
It could be (a tan wire looks like a dirty pink wire). If I remember correctly though, it was a 2x2 plug, not a 1x4 plug (know what I mean)?
RealQuick is offline
Reply
Old 05-26-2009, 12:27 PM
  #4
Registered User

My Red 93Z-28's Avatar

Join Date: Mar 2004
Location: BFE, Ohio
Posts: 1,504
If it was a 2x2 plug, than it wasn't the O2 plug.
My Red 93Z-28 is offline
Reply
Old 05-26-2009, 02:43 PM
  #5
Registered User

seawolf06's Avatar

Join Date: Jul 2004
Location: Raleigh, NC
Posts: 3,034
Could it be for the A/C compressor? No. 9 in this pic.

seawolf06 is offline
Reply
Old 05-26-2009, 05:01 PM
  #6
Registered User

boosted-lt1's Avatar

Join Date: Jan 2001
Location: Farmington Hills, MI
Posts: 657
Could it be for the A/C compressor? No. 9 in this pic.
I have a non-A/C car and I do not recall a connector like that on that side...
boosted-lt1 is offline
Reply
Old 05-26-2009, 05:07 PM
  #7
Registered User

caldercay's Avatar

Join Date: Jan 2008
Location: Cypress, TX
Posts: 466
Originally Posted by boosted-lt1
I have a non-A/C car and I do not recall a connector like that on that side...
Does that mean it *never* had an A/C?
caldercay is offline
Reply
Old 05-26-2009, 05:14 PM
  #8
Registered User

crash4cyl's Avatar

Join Date: Sep 2004
Location: Schaumburg, IL
Posts: 488
a/c wiring is usually a 2 wire connector,and flat. all it does is turn the clutch on and off
crash4cyl is offline
Reply
Old 05-26-2009, 05:23 PM
  #9
Administrator

Injuneer's Avatar

Join Date: Nov 1998
Location: Hell was full so they sent me to NJ
Posts: 70,650
Which car are you asking about - the 95 or the 96? The 96 would have a square (2x2) connector for the after-cat O2 sensor, and a flat (1x4) connector for the pre-cat sensor.
Injuneer is offline
Reply
Old 05-26-2009, 05:57 PM
  #10
Registered User

boosted-lt1's Avatar

Join Date: Jan 2001
Location: Farmington Hills, MI
Posts: 657
Does that mean it *never* had an A/C?
That's correct. It's also a single cat.

Injuneer might be onto something. I believe this is Jon's '96.

-Scott.
boosted-lt1 is offline
Reply
Old 05-26-2009, 10:39 PM
  #11
Registered User
Thread Starter

RealQuick's Avatar

Join Date: Feb 2002
Location: Bridgewater, MA
Posts: 5,645
Originally Posted by Injuneer
Which car are you asking about - the 95 or the 96? The 96 would have a square (2x2) connector for the after-cat O2 sensor, and a flat (1x4) connector for the pre-cat sensor.

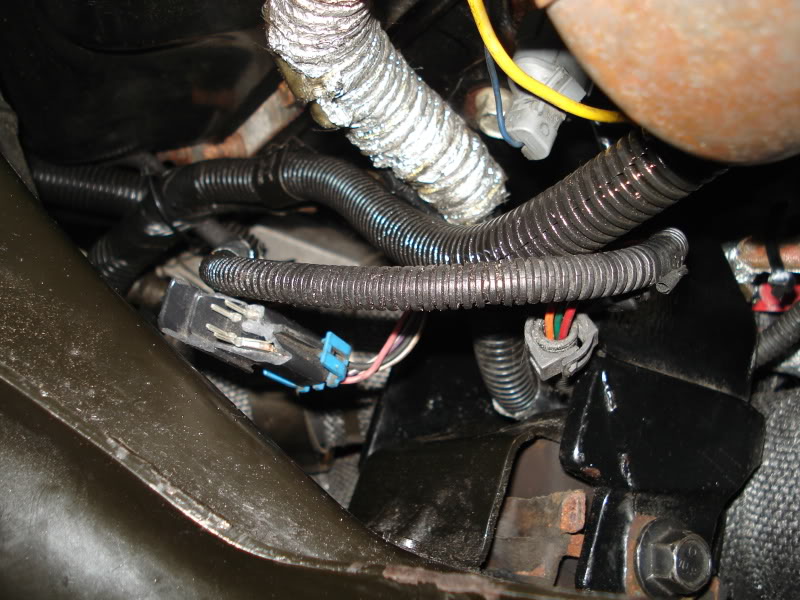

I was thinking it might be the post cat O2. here is a pic (96 TA)

Name: DSC01492.jpg Views: 8 Size: 120.6 KB
RealQuick is offline
Reply
Old 05-26-2009, 10:58 PM
  #12
Registered User

ACE1252's Avatar

Join Date: Mar 1999
Location: Kernersville, NC
Posts: 2,059
Originally Posted by RealQuick
I was thinking it might be the post cat O2. here is a pic (96 TA)
Yep....looks like the post cat O2 plug for the driver's cat.
ACE1252 is offline
Reply
Old 05-27-2009, 05:26 AM
  #13
Administrator

Injuneer's Avatar

Join Date: Nov 1998
Location: Hell was full so they sent me to NJ
Posts: 70,650
Originally Posted by boosted-lt1
That's correct. It's also a single cat.

Injuneer might be onto something. I believe this is Jon's '96.

-Scott.
But a 96 would have dual cats. The single cat cars (93-95) are OBD-I and don't have after-cat O2 sensors or connectors.
Injuneer is offline
Reply
Old 05-27-2009, 06:02 PM
  #14
Registered User

boosted-lt1's Avatar

Join Date: Jan 2001
Location: Farmington Hills, MI
Posts: 657
Injuneer,

Somehow I meant that my '95 has neither A/C nor post-cat sensor and I didn't recall ever dealing with that type of connector.

Is that Inductive...or Deductive...either way it was a poor attempt at explaining a thought

-Scott.
boosted-lt1 is offline
Reply
Old 05-28-2009, 05:29 AM
  #15
Administrator

Injuneer's Avatar

Join Date: Nov 1998
Location: Hell was full so they sent me to NJ
Posts: 70,650
Originally Posted by boosted-lt1
That's correct. It's also a single cat.

Injuneer might be onto something. I believe this is Jon's '96.

-Scott.
No logic involved.... you posted that its a 96 and had a single cat. Does not compute. Not sure how anyone was supposed to know it was a 95
Injuneer is offline
Reply
