Alternator plug

Thread Tools

Search this Thread

Old May 24, 2016 | 11:26 AM
  #1
chris20474's Avatar
Thread Starter
Registered User

Joined: May 2016
Posts: 2
Alternator plug

SO, upon replacing my alternator, i see that the plug is plugge dinto the alternator, however the wires are sevored beyond that and didnt see them underneath. How hard to replace that?

Last edited by chris20474; May 24, 2016 at 11:49 AM.
Old May 24, 2016 | 11:56 AM
  #2
Injuneer's Avatar
Administrator

Joined: Nov 1998
Posts: 71,098
From: Hell was full so they sent me to NJ
Re: Alternator plug

What year? What engine?
Old May 25, 2016 | 08:56 AM
  #3
chris20474's Avatar
Thread Starter
Registered User

Joined: May 2016
Posts: 2
Re: Alternator plug

Originally Posted by Injuneer
What year? What engine?
2002 camaro, Z28, V8 . the end of the plug was still plugged in, however the wires from the plug to wherever they go were missing...
Old May 25, 2016 | 08:51 PM
  #4
GaryDoug's Avatar
Prominent Member

Joined: Jul 2010
Posts: 1,520
From: Born on the Florida West Coast, now where can I retire?
Re: Alternator plug

There is just one small wire. It is red and, if disconnected, the alternator will not work. The alternator has been removed in this photo. The red arrows point to the small red wire.
Attached Thumbnails Alternator plug-alternator-connector.jpg
Old May 25, 2016 | 09:08 PM
  #5
GaryDoug's Avatar
Prominent Member

Joined: Jul 2010
Posts: 1,520
From: Born on the Florida West Coast, now where can I retire?
Re: Alternator plug

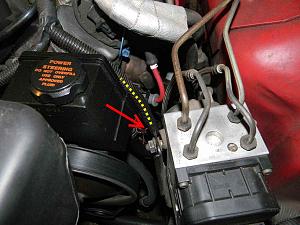

Here is a top side view that shows the tubing which houses the red wire with others (yellow dotted line). The red wire is the one to it's left with the larger red arrow. Click on these images to see clearer versions. These two photos were taken at very different times.
Attached Thumbnails Alternator plug-alternator-wire-location.jpg

Last edited by GaryDoug; May 25, 2016 at 09:12 PM.
