I did not want to punch a new hole in my new Canton oil pan so I was wondering how did everyone utilize the oil provision thats already built into the pan on the passenger side? Here is a pic:





-B



I was just looking at the same thing on mine, Im going to weld a fitting in the front corner of mine tho, that plug on the kick outs arnt a good spot for a return sence its already under oil it might have a hard time returning all the way back there.



Exactly as above. Do not install the return in the fitting in the sump. That fitting is for a temp gauge. The return should be as high as possible. The flow rate of a P600B is about 1/2 qt a min @ 50 psi and standard 10w30 oil. The D1/D2 steps up to 2 qt a min. That really needs an unimpeded return path to keep from having seal issues.



Umm... then where do you guys suggest that I weld in a bung? Is a welded bung better than say fuel bulkhead fitting?

-B



Im going to make a fitting to weld in so if I ever get a SC series charger then I can just put a plug in there, Im putting the plug right in the factory spot, on the front driver corner as high as I can get it.



O BTW did you check the fitment on your pan yet? I had to bend in the crank scraper a little on my 383, but I have big manley h beam rods, just make sure they dont hit on yours like they did on mine.



The pan cleared my H-beam rods however the machinest had to bend my dip stick tube and notch the baffle a bit get the dip stick tube to slide in. Other than that its good.

-B



Also does anyone have pics of the bungs welded on their Canton pan?

-B





Thanks for the pics! Do you happen to have any pics of it installed? Also was that braised or MIG welded on?

-B

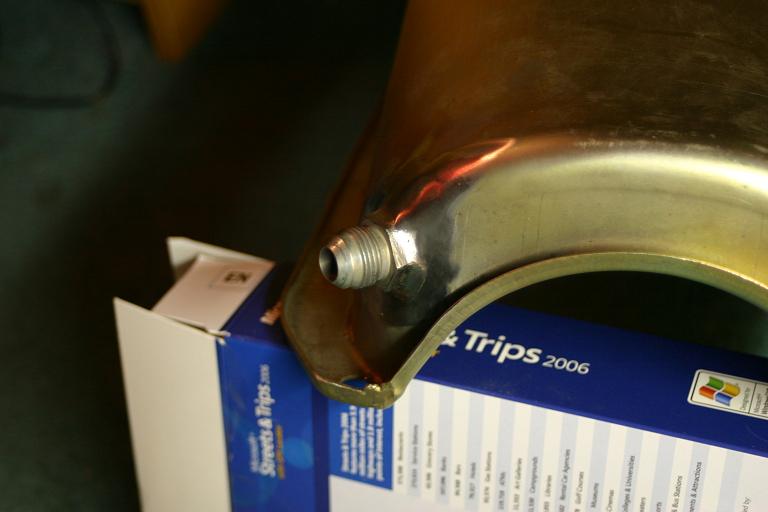

my motor isnt in the car yet, I mig welded mine.



Cool! I'm assuming thats a steel -8 AN fitting?



yes 8 AN its an earls weld in fitting.



Here's mine. I had a 1/2" npt fitting welded into the pan. The first fitting is a 1/2 npt to -8 adaptor and the 2nd is a -8 cap. I'll use a 90 degree hose fitting when I install the blower in the next few months. I'm still trying to get the thing ready to start.



Thanks for the pictures guys! Once I get the engine on the stand I'll mock up the blower and will probably go with a -8AN bung and lines to the blower. does anyone know what size the oil outlet bung is on a D1 procharger?

-B
