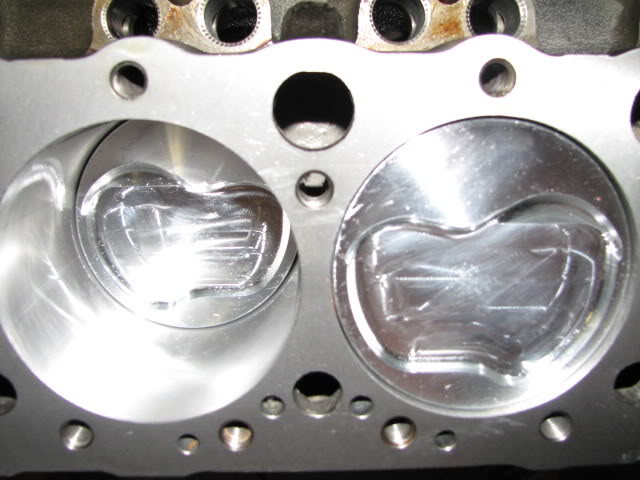

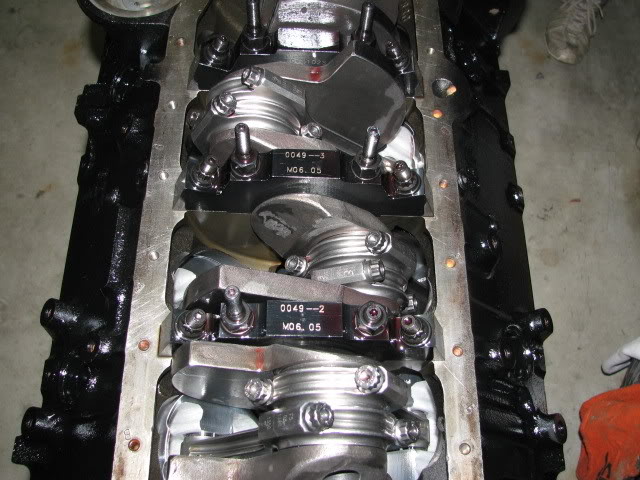

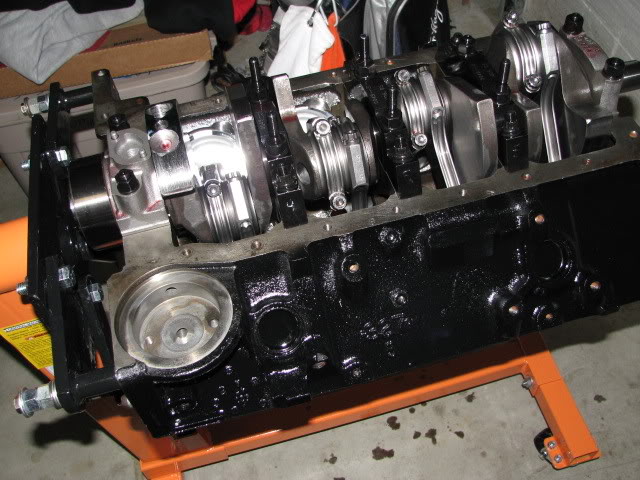

The LT1 is a 355 with all forged internals, JE extreme duty pistons designed for boost, Scat forged crank, and Eagle H-beams with ARP L19 series rod bolts. The block has 4-bolt splayed mains with ARP 2000 series main studs and the block has been half filled with hard block, making the bottom end extremely solid. Everything was professionally machined and assembled by B.E.S. racing engines, one of the best engine builders in the country. The short-block was designed to make at least 1000 bhp reliably. With 58cc heads the CPR is 9.2:1 and with 64cc heads the CPR is 8.7:1.

The following hardware was used, everthing is new.
Dura-bond cam bearing set (pn CHP-8T)
Sealed Power Rod Bearings (pn 8-2555A)
Sealed Power Main Bearings (pn 4663MA)
Total Seal Piston Rings (pn MT3690 35)
Arp Main Studs (pn 234-5601)
Eagle Main Caps (pn C-4102S)
JE Pistons (pn 131636)
Eagle H-Beam Rods (CRS5700B3DL 19)
JE Pins (pn QS-9000)
Scat Forged Crank (4-350-3480-5700)

The following machine work was done by B.E.S.
Hot Tank and Install Freeze Plugs
Install Cam Bearings
Fit Rings
Clearance Block
Hard Fill Block, Drill and Tap Water Drain Holes
Bore and Hone Block with Torque Plate
Deck Cylinder Block
Polish Crank and Magnaflux
Line Bore Block and Fit Steel Caps
Assemble Short Block/ Crank, Rods and Pistons











I have all receipts totaling over 6,000 dollars; I'm looking for 3,500 Cash. Contact Corey Luman @ crluman@gmail.com



Bump!! offers welcome



Bump! This shortblock is brand new and built by one of the best machine shops in the country B.E.S. http://www.besracing.com/



Bump!!!



pm'd



Sold
