New turbo kit for the shop car

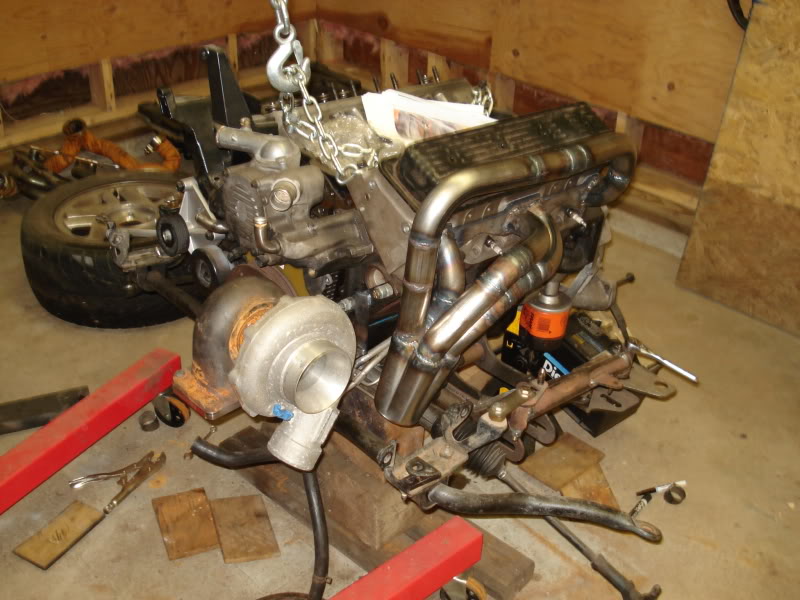

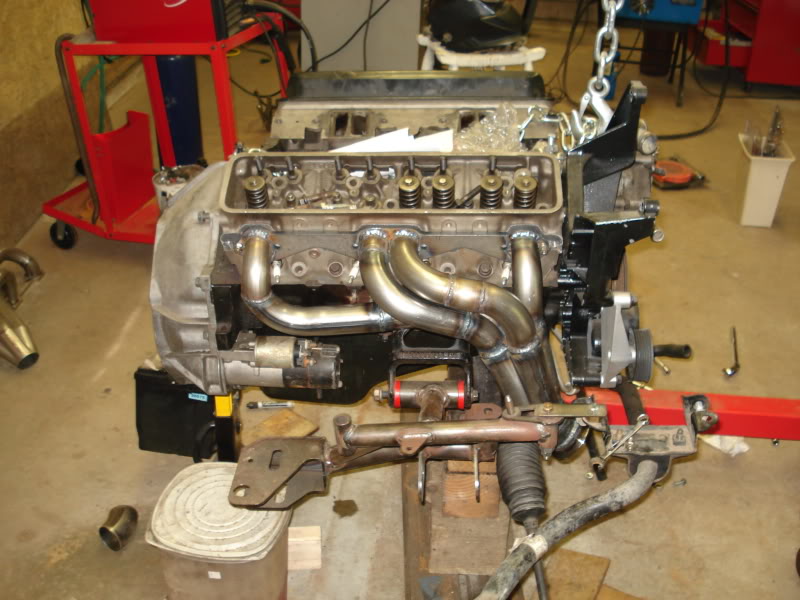

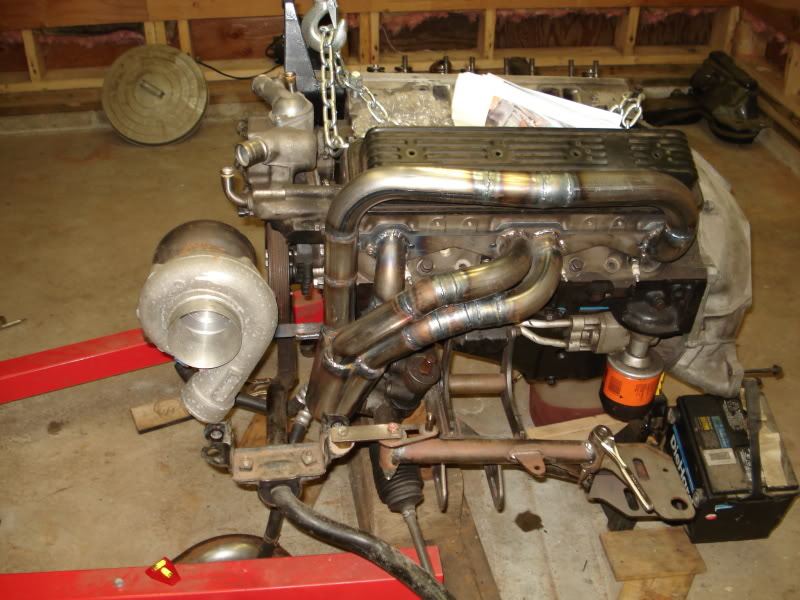

While waiting for stainless pipe for a customer's build, I started building a new kit for the shop car. It will consist of the following:

Custom 1.75" primary tube headers
2.5" merge w/ 3" DP
PT76GTS
50Rmm JGS wastegate
60mm JGS BOV
4" IC
3" Black powder coated pipes

Kit will be finished around the stock K

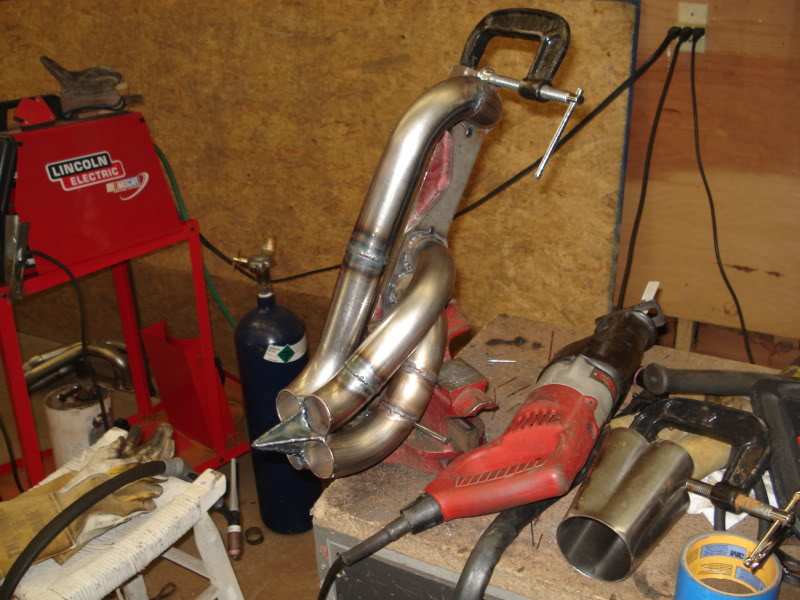

Name:  DSC02077.jpg
Views: 146
Size:  102.1 KB

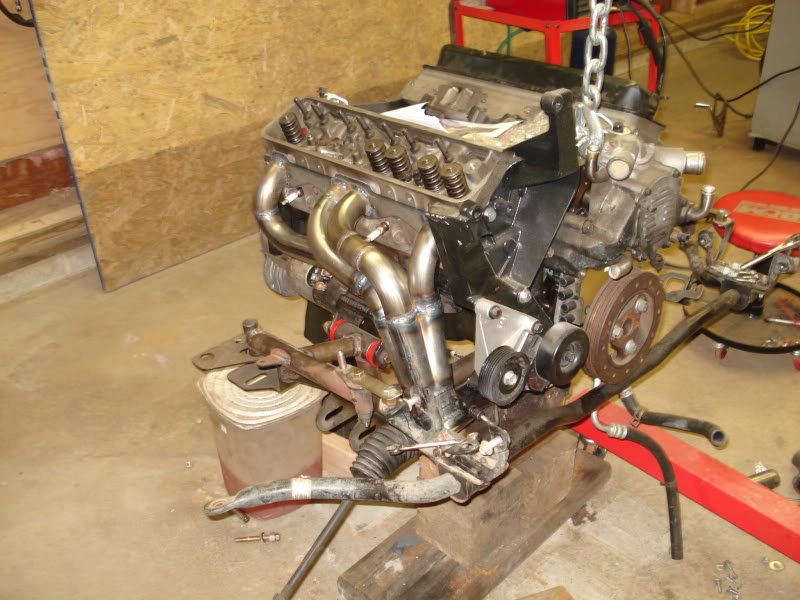

Name:  DSC02079.jpg
Views: 126
Size:  117.5 KB
Name:  DSC02080.jpg
Views: 110
Size:  104.0 KB

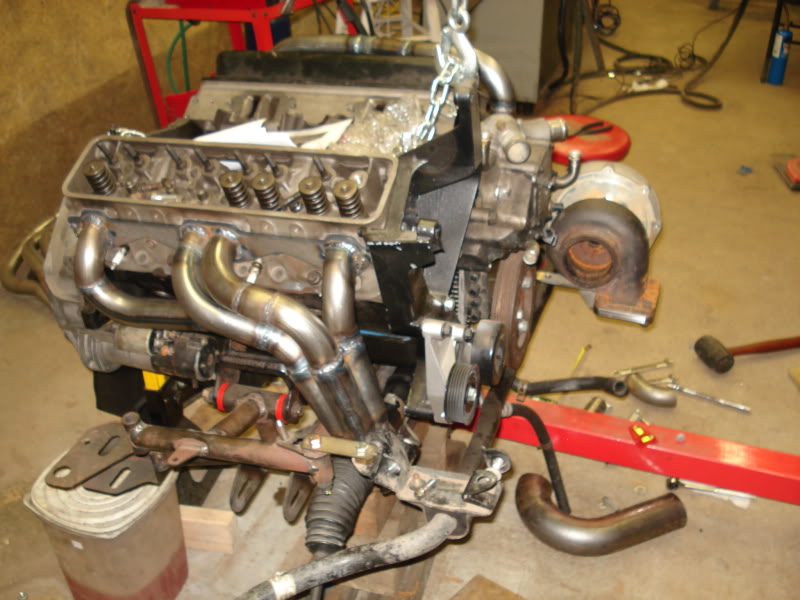

Name:  DSC02086.jpg
Views: 103
Size:  106.4 KB
Name:  DSC02087.jpg
Views: 91
Size:  103.3 KB
Name:  DSC02088.jpg
Views: 94
Size:  106.7 KB

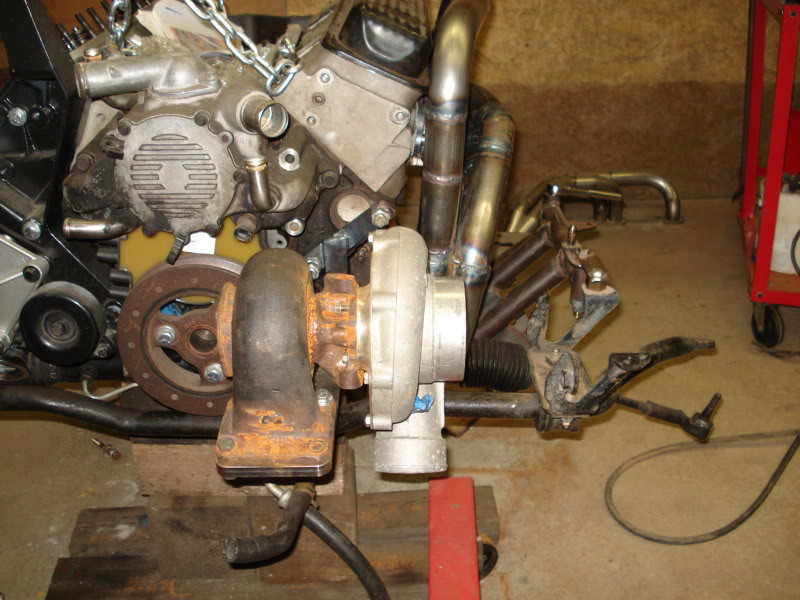

Name:  DSC02089.jpg
Views: 88
Size:  103.7 KB
RealQuick is offline
Old 07-02-2010, 07:50 AM
  #2
Registered User
Thread Starter

Join Date: Feb 2002
Location: Bridgewater, MA
Posts: 5,650
The primary tube on the driver's side is that high so I can do plug changes from the top
RealQuick is offline
Old 07-03-2010, 06:17 PM
  #3
Registered User
Thread Starter

Join Date: Feb 2002
Location: Bridgewater, MA
Posts: 5,650

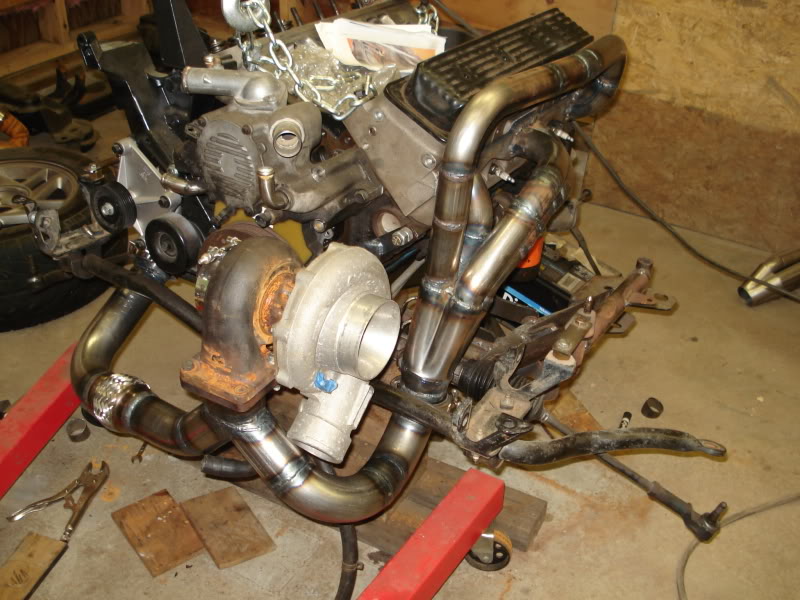

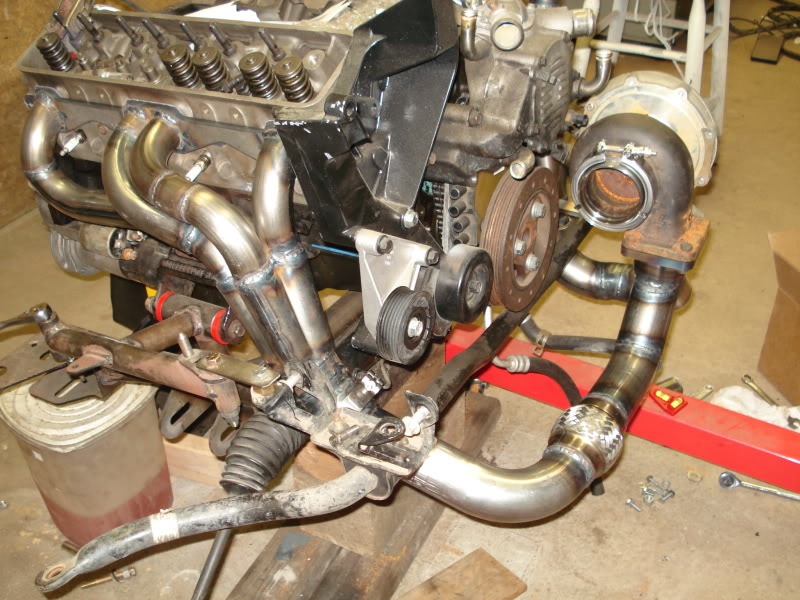

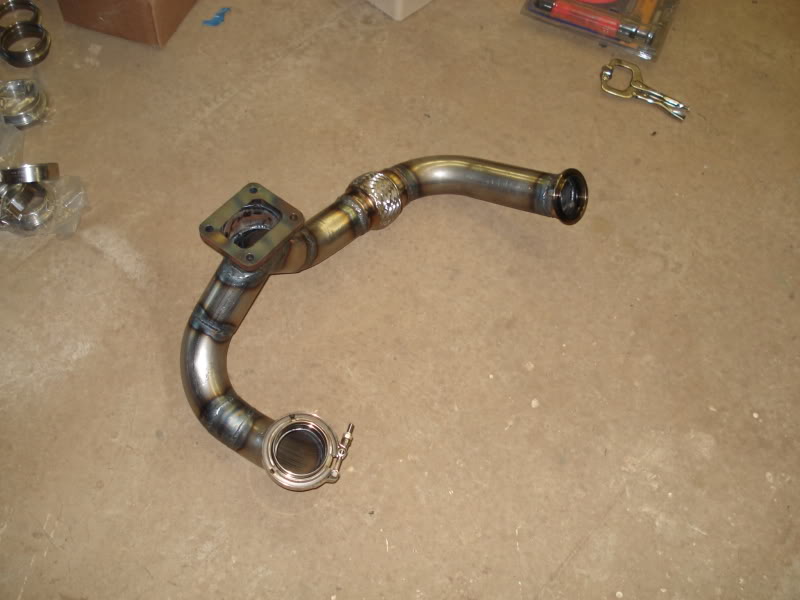

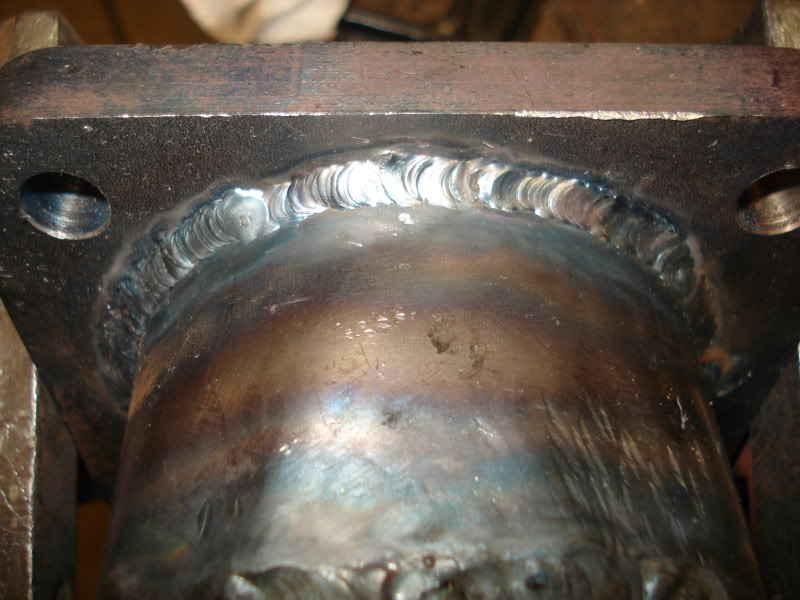

Did some more work:

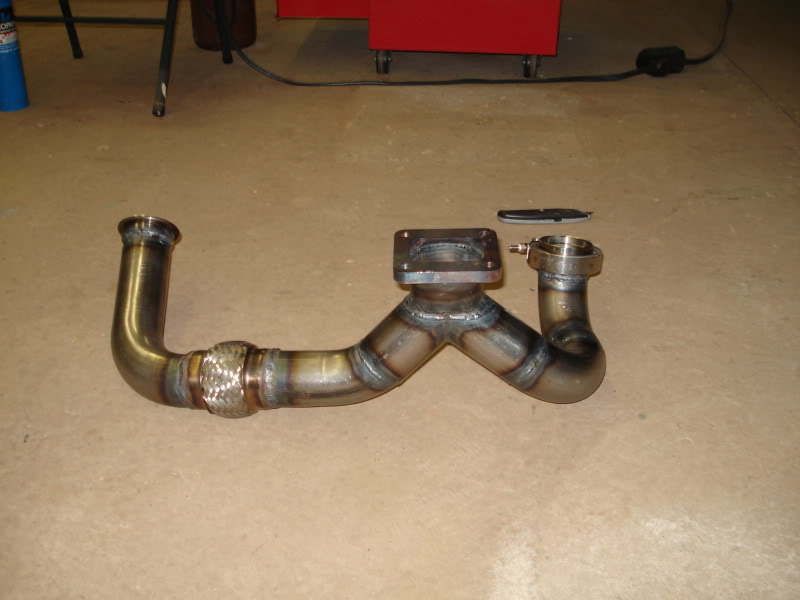

Name:  DSC02095.jpg
Views: 144
Size:  86.2 KB

Name:  DSC02096.jpg
Views: 140
Size:  54.4 KB

Name:  DSC02097.jpg
Views: 86
Size:  62.1 KB

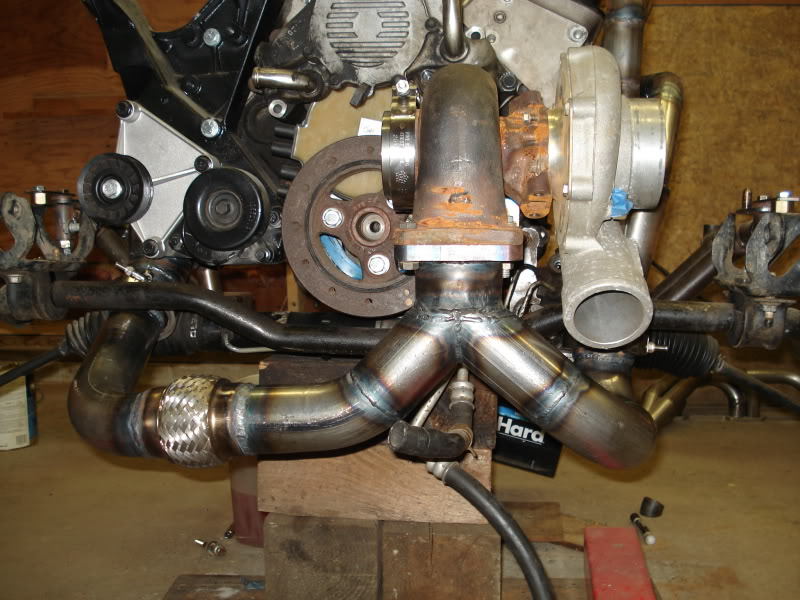

Name:  DSC02105.jpg
Views: 89
Size:  114.3 KB

Name:  DSC02103.jpg
Views: 139
Size:  115.0 KB

Name:  DSC02102.jpg
Views: 99
Size:  140.5 KB

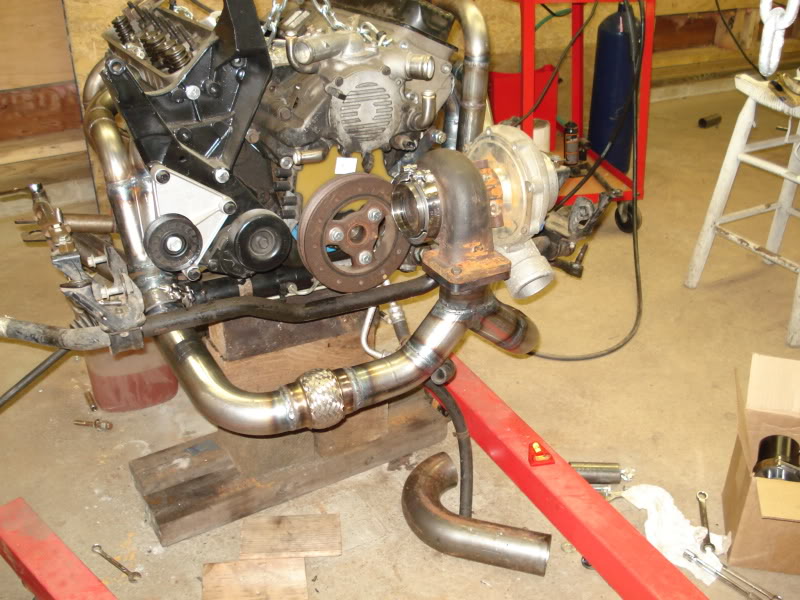

Name:  DSC02100.jpg
Views: 79
Size:  123.0 KB
RealQuick is offline
Old 07-03-2010, 06:41 PM
  #4
Registered User

Join Date: Mar 2004
Posts: 2,707
what kind of power do you think it will make with those headers???
slomarao is offline
Old 07-03-2010, 06:45 PM
  #5
Registered User
Thread Starter

Join Date: Feb 2002
Location: Bridgewater, MA
Posts: 5,650
Should support 1000rwhp no problem with the right turbo. i am running a T76, so it should max out somewhere around 850-900rwhp.
RealQuick is offline
Old 07-07-2010, 09:10 AM
  #6
Registered User
Thread Starter

Join Date: Feb 2002
Location: Bridgewater, MA
Posts: 5,650
Just spoke with Lloyd Elliott. He is going to work over some TFS heads/intake for me.
RealQuick is offline
Old 07-07-2010, 09:21 PM
  #7
Registered User
Thread Starter

Join Date: Feb 2002
Location: Bridgewater, MA
Posts: 5,650

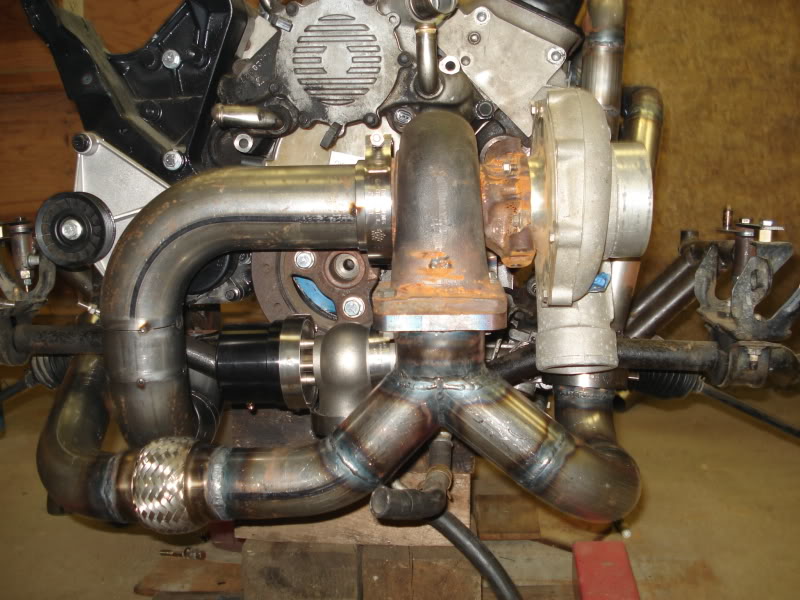

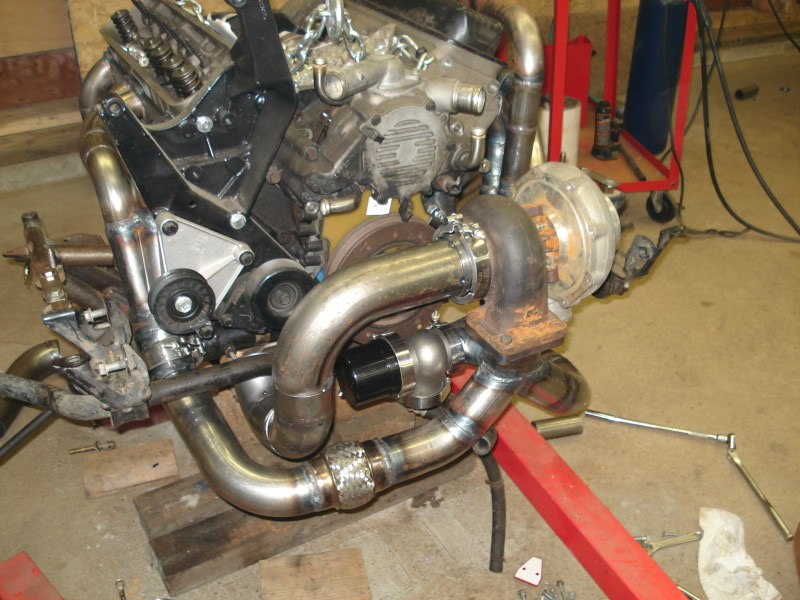

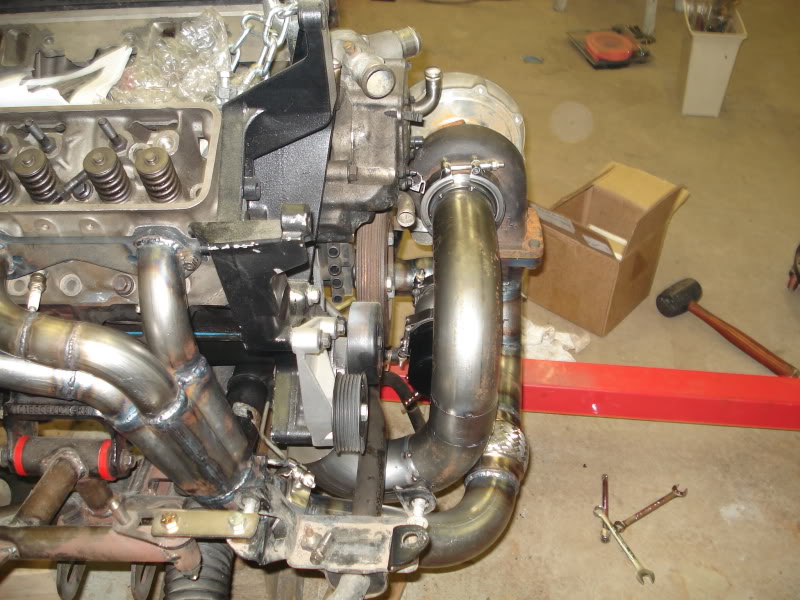

Name:  DSC02112.jpg
Views: 153
Size:  110.6 KB
Name:  DSC02109.jpg
Views: 107
Size:  111.6 KB
Name:  DSC02110.jpg
Views: 81
Size:  117.3 KB
RealQuick is offline
Old 07-07-2010, 09:47 PM
  #8
Registered User

Join Date: Sep 2002
Location: Piscataway, NJ USA
Posts: 616
Which heads is he going to work over for you? The new 21 deg or the ones made for a stroker/boost/nitrous car?
BlackbirdWS6 is offline
Old 07-08-2010, 04:31 AM
  #9
Registered User

KyleW93z's Avatar

Join Date: Mar 2005
Location: Ft Collins, Colorado
Posts: 113
Oh man, you're killing me with all these pics looks wicked. I really like the higher primary driver side tube for plug access. Great idea
KyleW93z is offline
Old 07-08-2010, 07:28 AM
  #10
Registered User
Thread Starter

Join Date: Feb 2002
Location: Bridgewater, MA
Posts: 5,650
Originally Posted by BlackbirdWS6 View Post
Which heads is he going to work over for you? The new 21 deg or the ones made for a stroker/boost/nitrous car?
The old version.
RealQuick is offline
Old 07-08-2010, 07:33 AM
  #11
Registered User
Thread Starter

Join Date: Feb 2002
Location: Bridgewater, MA
Posts: 5,650
Originally Posted by KyleW93z View Post
Oh man, you're killing me with all these pics looks wicked. I really like the higher primary driver side tube for plug access. Great idea
Thanks man. The tube may look funny outside the car, but it looks normal in the car and plug access is important!
RealQuick is offline
Old 07-22-2010, 03:12 AM
  #12
Registered User

Join Date: Jan 2002
Location: Mission, Kansas
Posts: 1,743
Yes plug access is very important! Looks good!
1982z28with18s is offline
Old 07-26-2010, 07:47 AM
  #13
Registered User
Thread Starter

Join Date: Feb 2002
Location: Bridgewater, MA
Posts: 5,650
Thanks guys!

Got a quote from Jet Hot... $680 to coat my hotparts! I also got a quote from another vendor... $275
RealQuick is offline
Old 08-02-2010, 02:40 PM
  #14
Registered User
Thread Starter

Join Date: Feb 2002
Location: Bridgewater, MA
Posts: 5,650
Update:

OFI radiator installed
Catch can relocated
Painted engine bay (rattle canned)
Cleaning up engine bay wiring
Fabbed up cold side piping (all except for 4" air filter pipe)

Making progress... pics to come.
RealQuick is offline
Old 08-05-2010, 09:36 AM
  #15
Registered User

Join Date: Nov 2002
Location: Jacksonville
Posts: 4,790
