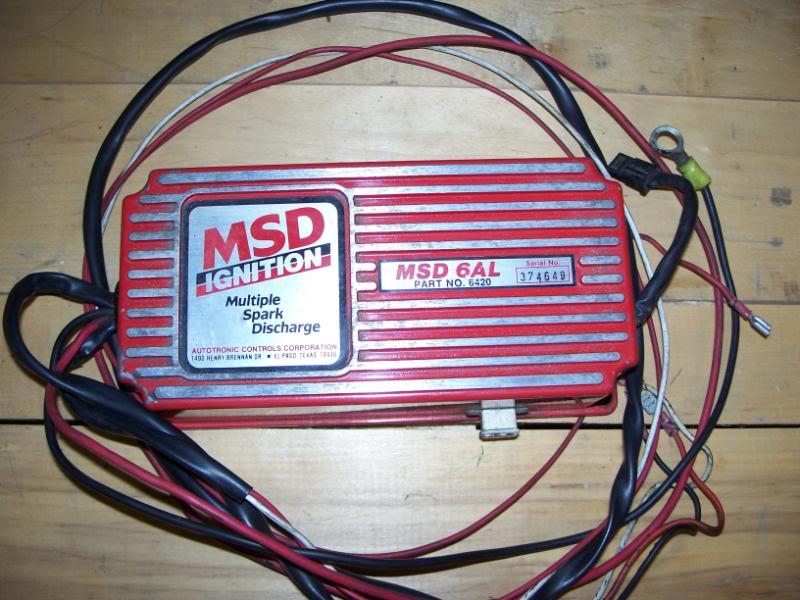

MSD 6AL Ignition Box # 6420
The MSD 6AL ignition box is the perfect choice for the street or the track. The powerful capacitive discharge, multiple sparks ensure complete combustion of the air/fuel mixture to increase power and performance. MSD has taken the proven performance of the 6A and added a rev limiter. The soft touch rev control will protect your engine from over revving. Adjustments are easily made with plug-in modules, so there are no dials, switches, or programs to deal with. At your selected rpm, the soft touch begins dropping the spark to some of the cylinders, and on the next cycle, these same cylinders are fired to prevent loading up with fuel. The result is a smooth and accurate limiting action without backfires or roughness. They'll work with virtually any 4, 6, or 8-cylinder vehicle with a distributor, as long as it has a 12-18 V electrical system. It is used but in great condition. If you are interested or have any questions please email me. I'm located in Southern Maryland.
Selling it for $160 + Shipping
OPERATING SPECIFICATIONS
Spark Energy: 105-115 mJ per spark
Primary Voltage: 450-480 Volts
Secondary Voltage: 45,000 Volts
Spark Series Duration: 20 degree Crankshaft Rotation
RPM Range: 15,000 RPM with 14.4 Volts
Voltage Required: 12-18 Volts, Negative Ground
Current Draw: 1 Amp per 1,000 RPM
Weight and Size 3 lbs.,8"L x 4"W x 2.25"H
Selling it for $160 + Shipping
OPERATING SPECIFICATIONS
Spark Energy: 105-115 mJ per spark
Primary Voltage: 450-480 Volts
Secondary Voltage: 45,000 Volts
Spark Series Duration: 20 degree Crankshaft Rotation
RPM Range: 15,000 RPM with 14.4 Volts
Voltage Required: 12-18 Volts, Negative Ground
Current Draw: 1 Amp per 1,000 RPM
Weight and Size 3 lbs.,8"L x 4"W x 2.25"H
