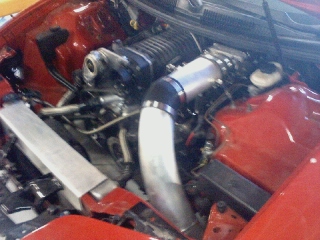

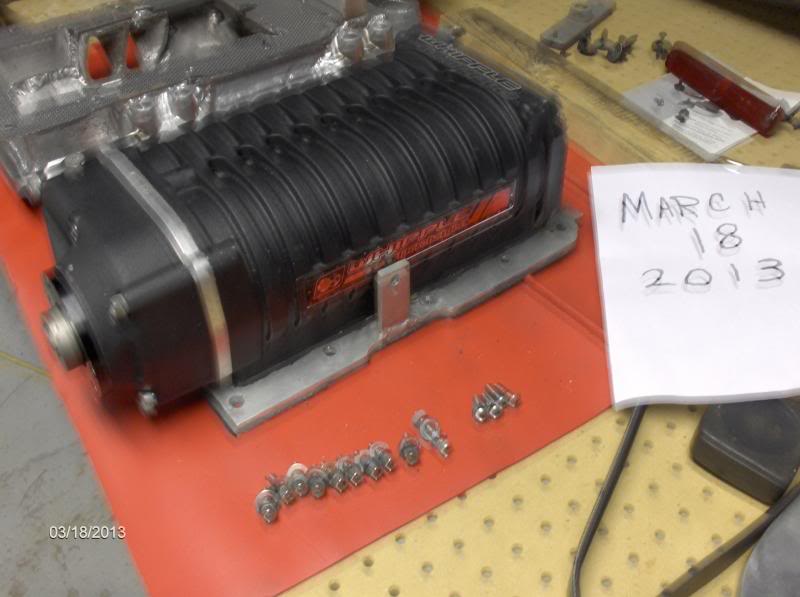

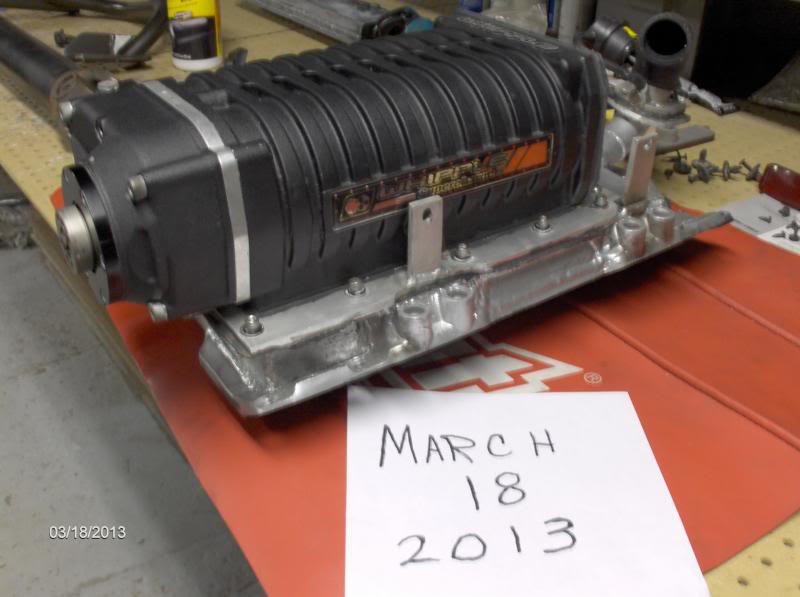

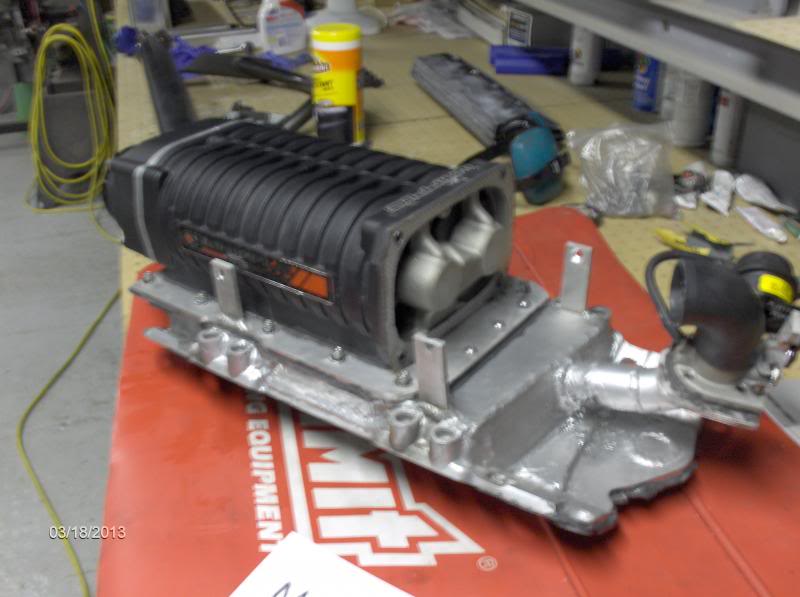

Hello, I am selling my PROTOTYPE Custom 2.9 Whipple manifold to work with an LT1 Fbody. I am selling the base I built to pursue another base with possibly a bigger blower and some converted SBC heads (know that I know it can be done).

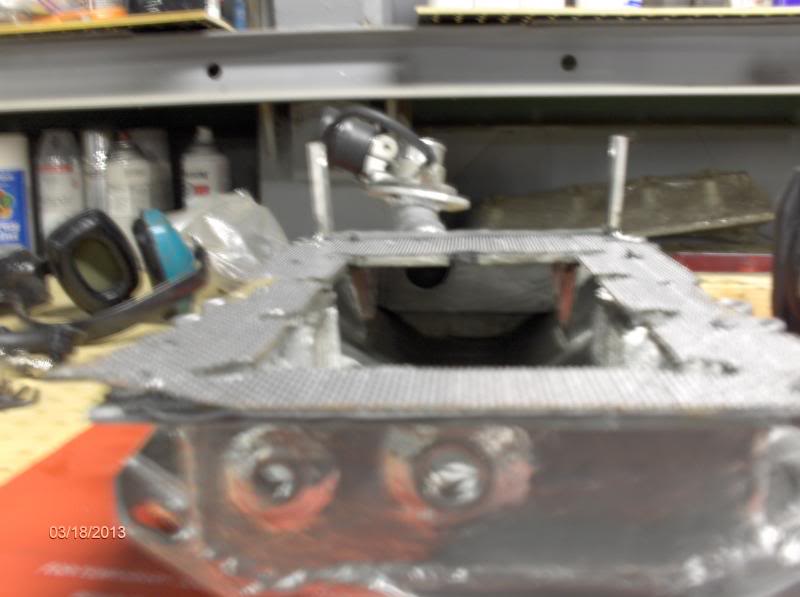

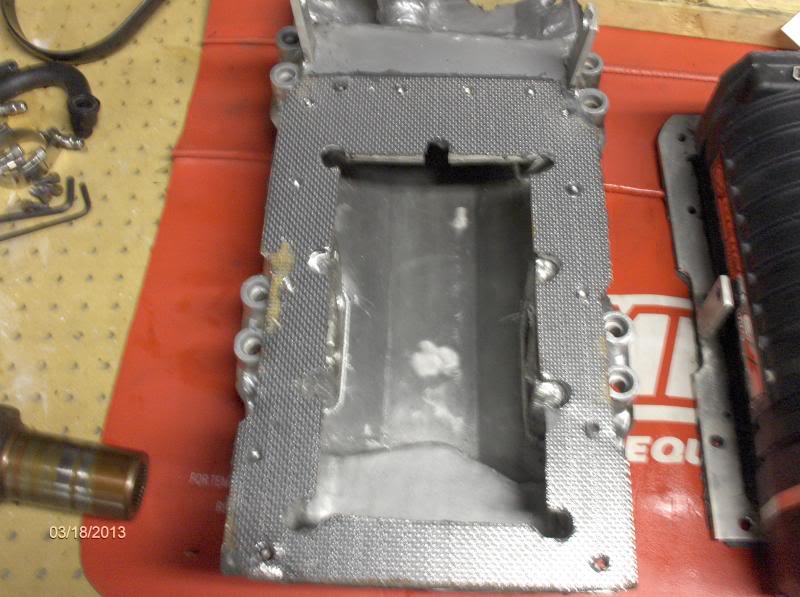

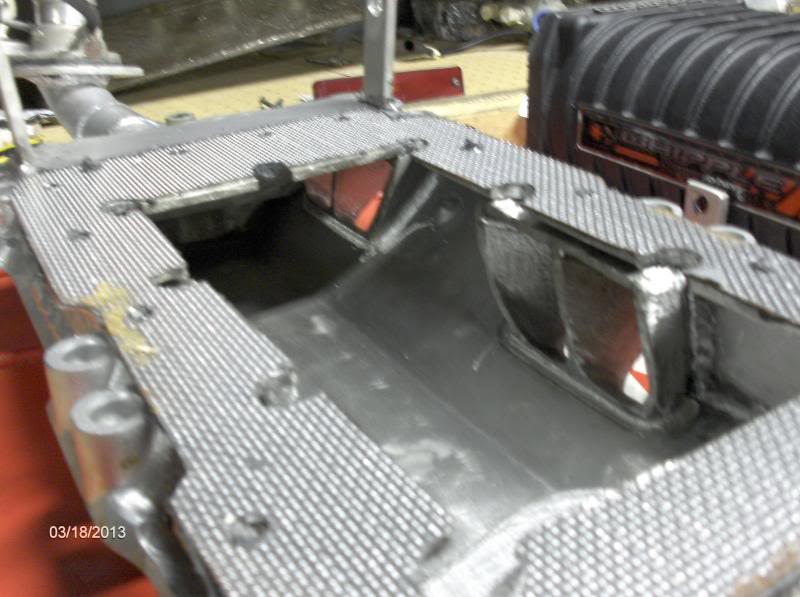

Selling the base for $900 this included the base ready to accept a magnacharger bypass valve (in pics), the plate the Whipple bolts to which bolts to the manifold, Stainless allen heads bolts that thread into the base to seal off the blower. From the pics I used a multi layer gakset I bought at a local parts store in sheet form and cut it to work.
The base accepts a 3/8 threaded IAT sensor and next too it is a 1/8 npt to accept a hobbs switch (See's boost to kick in second fuel pump).
The manfold uses only the outer 8 holes and I use angled washers to fix the bolt angle.
I currently plan to keep the 2.9, but if the buy is interested we can talk price on the entire kit. This would include the

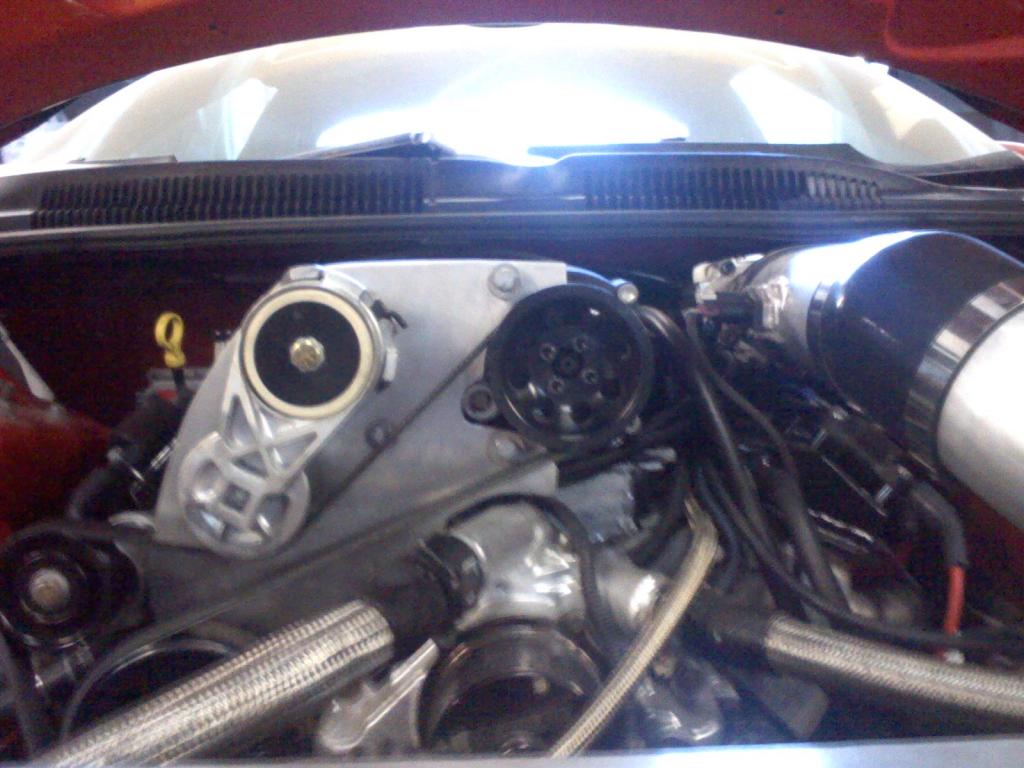

Speed INC alternator relocation kit with everything converted to 8 rib (alternator, idlers, Crank pulley) blower would come with a 3.5 blower pulley, 1/2 thick Aluminum Blower Bracket that bolts to whipple/Block which contains a heavy duty 8 rib spring loaded tensioner. Custom Valvecovers (driverside VC about 1.5 inches shorter to allow inlet to pass over (plenty of clearence even with my 1.6 pro-mags), Aluminum Rear inlet which uses any LTX TB, Lokar cable setup, magnacharger Bypass valve, Aluminum 4.5 inlet with Card Style LS7/9 MAF sensor housing with 4.5 K/N Filter located outside of engine bay (comes with couplers and T-bolt clamps, Aluminum plate 1/4 inch K-member spacers to lower engine, 60lb mototron injectors, Edelbrock Fuel Rails with Fittings/lines, Thermostat Top housing (clocked inward to clear Blower bracket).
Price on all of this would be $5500, the parts alone are worth this, much less my time and R&D it took to build it.



Very cool. If I had a built motor, I would love this on my car.
