Can any one tell me what this wiring harness does?

Please. Im at the end of my rope. Im trying to get to the bottom of my random no start condition. I noticed when I wiggle this wiring harness the car dies. can any one please be my hero and tell me what this harness is for, what it does and if weather or not if its defective, can cause this living nightmare Ive been going through for the last two months. its directly in front of the computer, 1995 lt1.

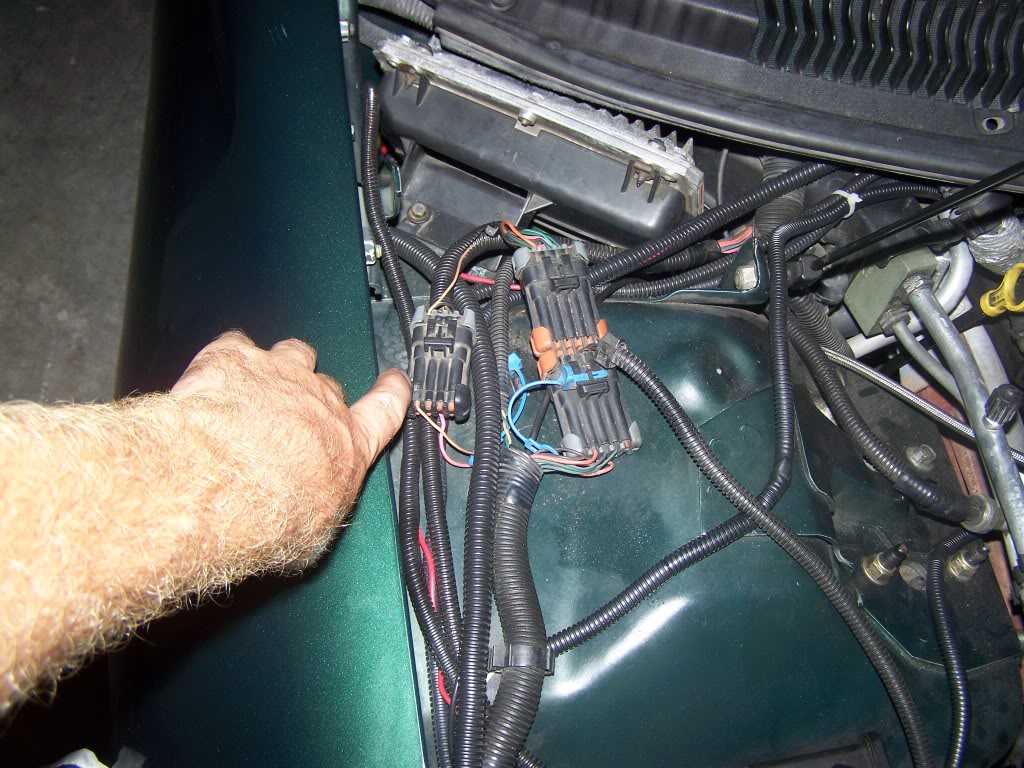

Name:  carwire005.jpg
Views: 29
Size:  182.9 KB

Name:  carwire004-1.jpg
Views: 70
Size:  186.7 KB

Name:  carwire003.jpg
Views: 32
Size:  116.6 KB

Name:  carwire002.jpg
Views: 25
Size:  178.1 KB

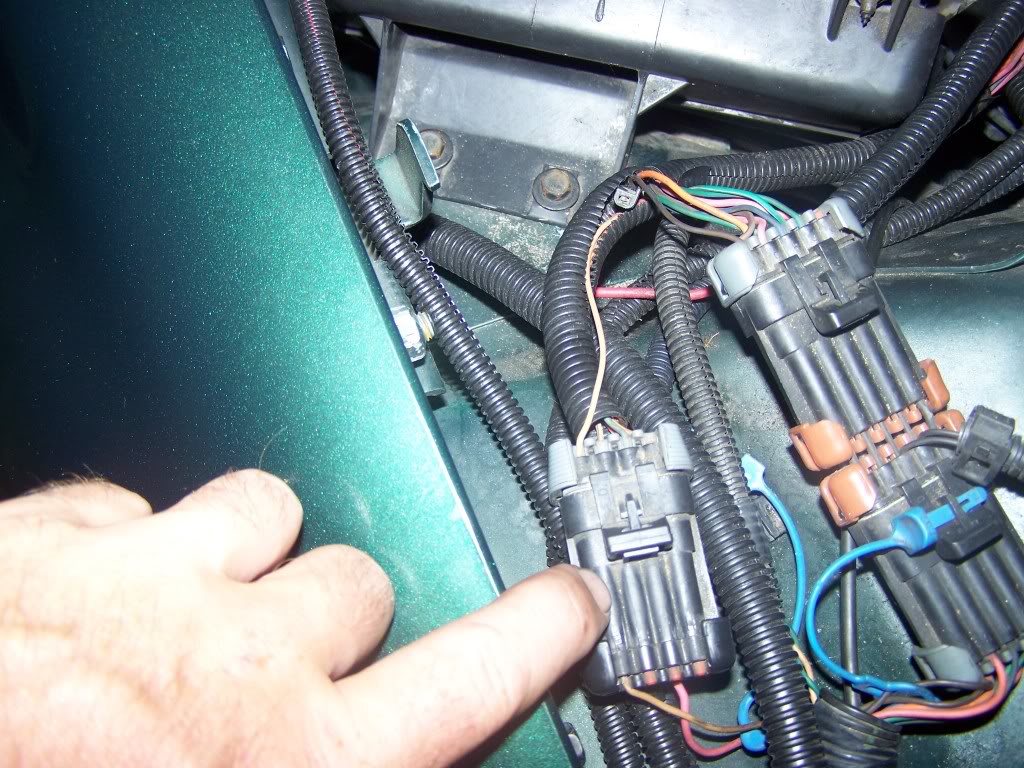

Name:  carwire004.jpg
Views: 19
Size:  186.7 KB
Old Sep 11, 2009 | 09:53 PM
  #2
shoebox's Avatar
Registered User

Joined: Dec 1969
Posts: 27,725
From: Little Rock, AR
Easy. It's C105. http://shbox.com/1/fan_switch_wires.jpg

The pink wire in it is power for injectors 1,4,6,7. Tan goes to the DLC (should not cause it to die).

http://shbox.com/1/harness_connector_faces.htm (click the C105 tab on the bottom of the page)

Last edited by shoebox; Sep 11, 2009 at 09:55 PM.
Old Sep 11, 2009 | 10:56 PM
  #3
SnakeOiler's Avatar
Registered User

Joined: Sep 2005
Posts: 391
From: Fredericksburg, VA
Originally Posted by gcouse7
....I know when you pull and engine that particular plug gets unplugged..
Nope. maybe you are thinking of something else.
Old Sep 11, 2009 | 11:34 PM
  #4
shoebox's Avatar
Registered User

Joined: Dec 1969
Posts: 27,725
From: Little Rock, AR
Originally Posted by SnakeOiler
Nope. maybe you are thinking of something else.
Yeah, it does if you are separating the engine harness from the chassis.
Old Sep 12, 2009 | 06:57 AM
  #5
SnakeOiler's Avatar
Registered User

Joined: Sep 2005
Posts: 391
From: Fredericksburg, VA
Ah, I have never gone that route.

I guess the 'bottom droppers' usually do that?

Last edited by SnakeOiler; Sep 12, 2009 at 06:59 AM.
