adusting pinion angle, t-56 and Dana S60
#1
adusting pinion angle, t-56 and Dana S60
Yes, actually I have searched. Only vague things have been said, but my question is where do you measure the angles??
While I had my Y pipe off, I put the magnetic angle finder on the bearing cap holder on the yoke (the part that goes into the tranny), and found that on the one side it reads that the tail of the tranny is 4 degrees below perfectly horizontal. So, if you look at the car from the drivers side, the front of the car on your left and the rear of the car on your right, the tranny slants \ <in that direction. But, the other side reads 5 degrees.
I then found the flat spot at the end of the tailshaft on the bottom that appears to be parallel to the mainshaft. That reads 4 degrees.
The yoke can be moved up and down in the tranny just enough to change the reading of the angle finder by a degree, or a degree and a half.
Where is the best place to put the angle finder to measure the angle of the tranny?
Moving on to the dana 60 rear from strange engineering, I measured at the bearing cap on the top and bottom, and got it adjusted to 4 degrees in the same direction when you look at it from the drivers side of the car again.
But when I measure the angle on the torque arm mounting surface (I have a spohn adjustable torque arm) it reads 3 degrees, and looks to be parallel to the pinion shaft.
The bearing cap has a ridge on it, and the yoke coming out of the rear has a tang that overhangs onto the bearing cap so it cant slide out, so the angle finder doesn't go over the whole cap... so I am not positive I am getting the right angle.
Where is the best place to put the angle finder on the rear end??
Once I get a good spot to put the angle finder, I plan on putting the nose of the rear down 1 degree compared to the tranny, because all I ever do is spirited driving right now. Eventually, I will go to the track and when I do then I will put it down another degree.
I know this is long and wordy, but I wanted to attempt to describe everything so that people with the same setup know exactly what I am describing. Or there abouts. hahaha
Thanks!!!
Cody
While I had my Y pipe off, I put the magnetic angle finder on the bearing cap holder on the yoke (the part that goes into the tranny), and found that on the one side it reads that the tail of the tranny is 4 degrees below perfectly horizontal. So, if you look at the car from the drivers side, the front of the car on your left and the rear of the car on your right, the tranny slants \ <in that direction. But, the other side reads 5 degrees.
I then found the flat spot at the end of the tailshaft on the bottom that appears to be parallel to the mainshaft. That reads 4 degrees.
The yoke can be moved up and down in the tranny just enough to change the reading of the angle finder by a degree, or a degree and a half.
Where is the best place to put the angle finder to measure the angle of the tranny?
Moving on to the dana 60 rear from strange engineering, I measured at the bearing cap on the top and bottom, and got it adjusted to 4 degrees in the same direction when you look at it from the drivers side of the car again.
But when I measure the angle on the torque arm mounting surface (I have a spohn adjustable torque arm) it reads 3 degrees, and looks to be parallel to the pinion shaft.
The bearing cap has a ridge on it, and the yoke coming out of the rear has a tang that overhangs onto the bearing cap so it cant slide out, so the angle finder doesn't go over the whole cap... so I am not positive I am getting the right angle.
Where is the best place to put the angle finder on the rear end??
Once I get a good spot to put the angle finder, I plan on putting the nose of the rear down 1 degree compared to the tranny, because all I ever do is spirited driving right now. Eventually, I will go to the track and when I do then I will put it down another degree.
I know this is long and wordy, but I wanted to attempt to describe everything so that people with the same setup know exactly what I am describing. Or there abouts. hahaha
Thanks!!!
Cody
#3
#4
Alright, well I was going to start my own thread but since this is basically the same thing and I'm having the same problem with a T56 and S60 I figured I'd throw this up here. (I'll make my own if the OP thinks I should).

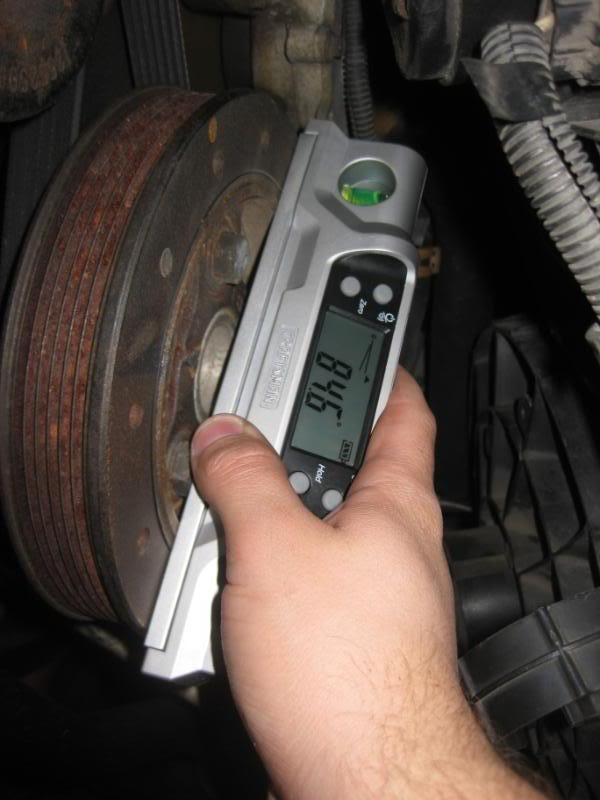

I measured my transmission angle from the harmonic balancer (looking from the passenger side)

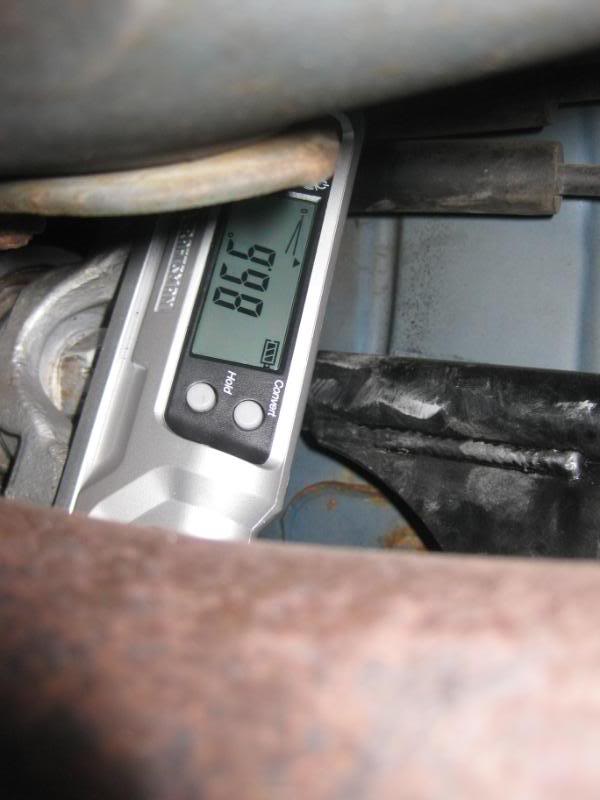

I measured my pinion angle from where the U-bolts hook up (again looking from the passenger side)
If my transmission is at a -5.4* and my pinion from the same side is a -3.4* do these give me a total difference of -2*?
I measured my transmission angle from the harmonic balancer (looking from the passenger side)
I measured my pinion angle from where the U-bolts hook up (again looking from the passenger side)
If my transmission is at a -5.4* and my pinion from the same side is a -3.4* do these give me a total difference of -2*?
#5
Its ok you can post here. We might as well get one super thread on adjusting the pinion of the S60 and T56.
What the F I never thought to measure it like that... Does it work?
Your logic is correct, you would have a -2 degrees difference. I am shooting to have mine at -.5 or -1 max, as it is a daily driver. We will see how much deflection I actually get with all the suspension mods when I hit her hard.
Have you driven your car with the angles set up using this method? Any vibes?? Im very curious here!
What the F I never thought to measure it like that... Does it work?
Your logic is correct, you would have a -2 degrees difference. I am shooting to have mine at -.5 or -1 max, as it is a daily driver. We will see how much deflection I actually get with all the suspension mods when I hit her hard.
Have you driven your car with the angles set up using this method? Any vibes?? Im very curious here!
#6
I haven't put it back together yet, I'll take her out later tonight if it stops raining and report back. I also called a local place about balancing a driveshaft if this doesn't work.\
EDIT: You can measure from the harmonic balancer because it should be a straight shot from there all the way back to your transmission output shaft.
EDIT: You can measure from the harmonic balancer because it should be a straight shot from there all the way back to your transmission output shaft.
#7
I haven't put it back together yet, I'll take her out later tonight if it stops raining and report back. I also called a local place about balancing a driveshaft if this doesn't work.\
EDIT: You can measure from the harmonic balancer because it should be a straight shot from there all the way back to your transmission output shaft.
EDIT: You can measure from the harmonic balancer because it should be a straight shot from there all the way back to your transmission output shaft.
#8
Well, it seems to have taken away about 65% of the vibration. It's still pretty loud though. I've never been in another car that had the tunnel mounted brace or with an S60, so I'm not sure what it's supposed to really feel like. Looks like I'll be taking my driveshaft in just to make sure that's not the problem.
#9
Well, it seems to have taken away about 65% of the vibration. It's still pretty loud though. I've never been in another car that had the tunnel mounted brace or with an S60, so I'm not sure what it's supposed to really feel like. Looks like I'll be taking my driveshaft in just to make sure that's not the problem.
With my spohn torque arm I personally only noticed minimal noise increase, as I got the poly front mount, and also put a piece of rubber between the brace and the car. But, Im always driving around with the t-tops off and the exhuast valve open anyways, so it doesn't matter.
#10
Got my driveshaft balanced at a Fleet Pride in town and took the car back out today. The vibration is 99% gone now. What's left is more noise than vibration probably from the tubbel mounted torque arm. Either way I can actually get it above 80 now without it feeling like it's going to shake loose.
I have the front poly mount as well, where did you get a piece of rubber to fit between the brace and the car? Also, does it effect how long the bolts need to be?
I have the front poly mount as well, where did you get a piece of rubber to fit between the brace and the car? Also, does it effect how long the bolts need to be?
#11
Got my driveshaft balanced at a Fleet Pride in town and took the car back out today. The vibration is 99% gone now. What's left is more noise than vibration probably from the tubbel mounted torque arm. Either way I can actually get it above 80 now without it feeling like it's going to shake loose.
I have the front poly mount as well, where did you get a piece of rubber to fit between the brace and the car? Also, does it effect how long the bolts need to be?
I have the front poly mount as well, where did you get a piece of rubber to fit between the brace and the car? Also, does it effect how long the bolts need to be?
#12
I also have a set of the 3-point sub frames. Where did you get the rubber to make it?
#14
yup, that works too, but the rubber I used was actually 1/8" thick, I was wrong. I actually had some in the garage. I just cut it in two, and make it like a gasket, like cutting it to shape and making the holes for the bolts. I just had my g brace off this weekend with the clutch install, and the rubber still looks great! Been there for 4 years. I reused it.
#15
im gonna try this rubber trick, ive have a little more vibration with the tunnel mount and prothane trans mount since added, i especially get a vibration at 55-57 than it disapears before and after wierd.... The pinion angle is correct
