94 Z-28 Turbo

A good friend of mine finally decided to sell his camaro that he built that I've been wanting for some years now. He sold it to work on his new car project(s) and I couldn't pass up the deal. I plan to use the car as more of a show/leisure car.


ENGINE
LT1 built by PAS
Lunati Forged Crank
Lunati Rods
Lunati Street/Strip Camshaft
3 Angle Valve Work
Port Matched Intake
Stock Bore Kit 9.0 Compression Ratio
HD JE Pistons
HD JE Rings
Clevite HD Race Bearings
Felpro Head Gasket
Hypertech 160 Thermostat
T.B. with Airfoil
T.B. Coolant Bypass Mod
Taylor 8mm Wires

DRIVETRAIN
Stage 5 built by XP Racing
B&M Deep Transmission Pan
GM 3.42 Posi Unit

POWER ADDER
ProTurbo Charger Kit installed by ProTurbo
T66 Precision Turbo .96A/R
Dual Spal 10in. Push Fans
2 Water Tanks
Tial 50mm Blow Off Valve
1 ¾” 4 into 1 Headers Fully Coated
2 ½” Crossover Pipe with Flex Section
Tial Billet 38mm Wastegate
Custom Water-to-Air Intercooler
Teel Marine Pump for Intercooler
4” Intake with 4” K&N Cone Filter
Air-to-Air Heat Exchanger Under Front Nose
3” Downpipe
Dual NOS Fogger Nozzles
NOS Purge System
Edelbrock Billet Aluminum Bottle Bracket

FUEL SYSTEM
36lb Accel Yellow Injectors
Walbro 155 liter Fuel Pump in Tank
Adjustable Fuel Pressure Regulator
Begl Boost Sensitive Fuel Regulator

ELECTRONICS
Autometer EGT Probes in Cyl. 5 and Down Pipe
Autometer Boost/Vacuum Gauge
Autometer Air/Fuel Gauge
Autometer EGT Gauge
Autometer Fuel Pressure Gauges
Autometer NOS Pressure Gauge
Digital Voltage Gauge
Turbo Timer
LT1 Stock Engine Management Tuned by Mike Murillo
PAC 200 AMP Circuit Breaker
Relocated Optima Battery
BMR Battery Relocation Kit

BRAKES
Willwood Superlite 6 Big Brake Front Disc Kit
Willwood Rear Heavy Duty Pro Series Brake Kit
Willwood Hi-Temp 570 Degree Racing Brake Fluid

SUSPENSION
BMR Adjustable Torque Arm
BMR Subframe Connectors and Crossmember
BMR Torque Arm Xtreme set at -1 Pinion Angle
BMR Control Arm Relocation Brackets
BMR Panhard Rod Relocation Kit
BMR Lowering Springs
BMR Front & Rear Sway Bars
V-Band Clamps and Ball Joints
Adjustable Front & Rear Shocks

STEREO SYSTEM
Kenwood KVT 719 DVD Player
Dynaudio 6.5 4-Speaker System in Front
Polk Audio Momo Carbon Fiber 5.5 System in Rear
2 10” JL Audio Subwoofers in Trunk Well
3 1-Farad Capacitors in Parallel
2 Boss Digital Amps
Pac 80 AMP Circuit Breaker

PAINT & BODY
Custom Painted by CD Design
2-Tone Black and Cayenne Red
24k Gold Leaf Separating the 2 Colors
Molded-in Ground Effects
Center Exit Exhaust System
Shaved Door Handles
Lamborghini Door Kit
Tonau Cover for Rear Seats
Rear Camaro Letters Filled
Trunk Key Hole Filled
Antenna Hole Filled and Replaced with Internal Antenna

INTERIOR
Painted Black Interior
Carbon Fiber Instrument Cluster and Door Inserts
Seats Upholsted in Black Leather with Dark Suede Inserts
Windows Tinted 5%
Windshield Tinted 35%

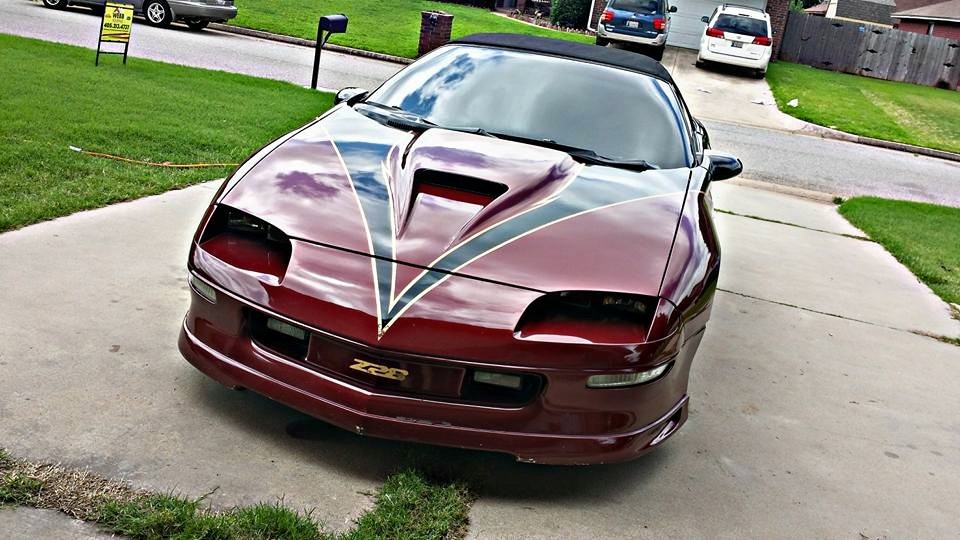

Name:  front_zpsxhklinvx.jpg
Views: 8204
Size:  125.4 KB

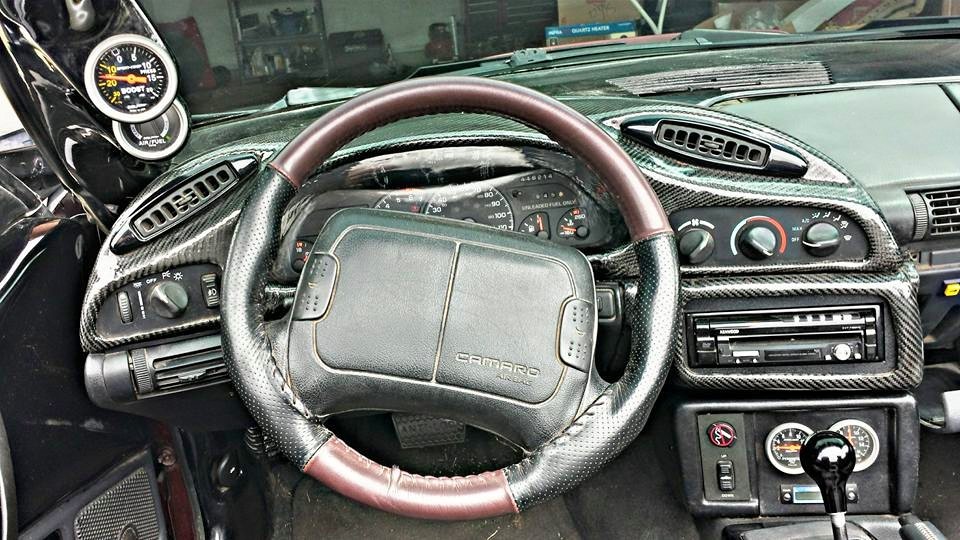

Name:  Instrument%20Panel_zpsjsi6takz.jpg
Views: 8212
Size:  153.5 KB

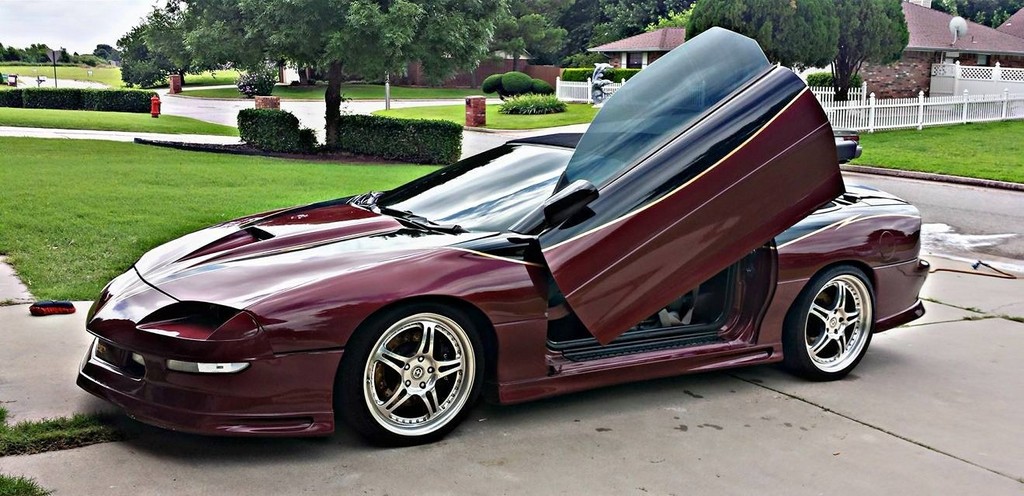

Name:  side_zpsvorymdv4.jpg
Views: 8270
Size:  173.0 KB

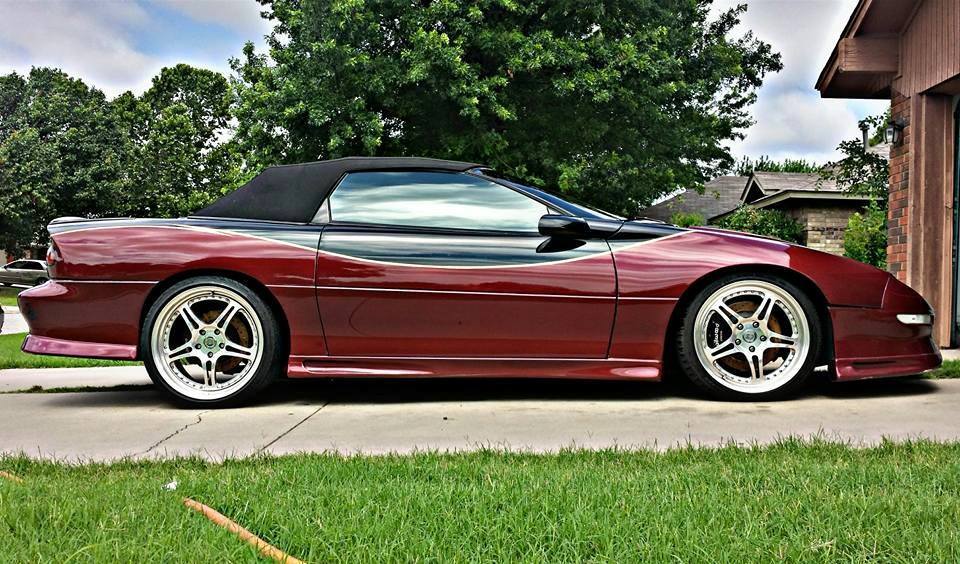

Name:  side%202_zpsgyfubf5g.jpg
Views: 8174
Size:  135.5 KB

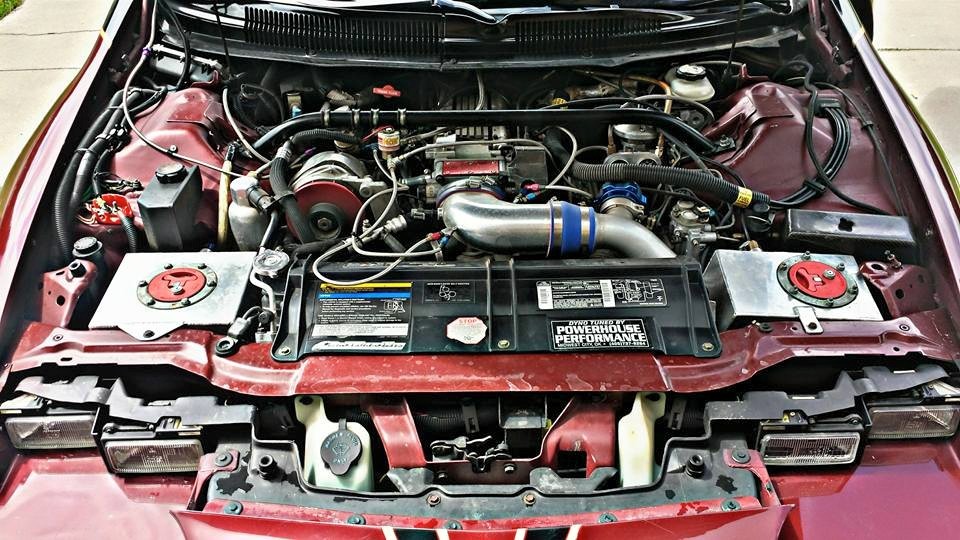

Name:  engine_zpsgqqcxlwo.jpg
Views: 8071
Size:  158.9 KB

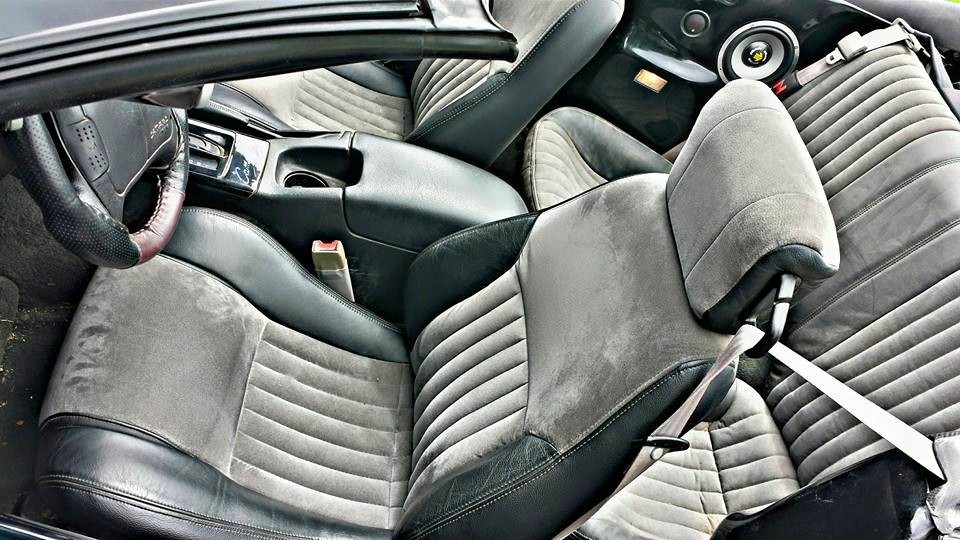

Name:  upholstery_zpsw3um9owd.jpg
Views: 8060
Size:  131.9 KB

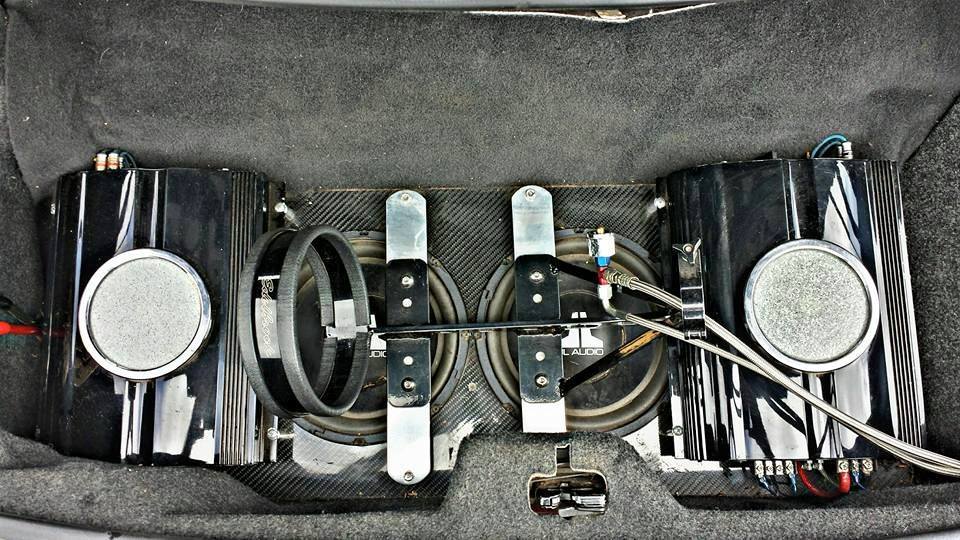

Name:  Trunk_zpsbd8fcjmk.jpg
Views: 8024
Size:  126.9 KB

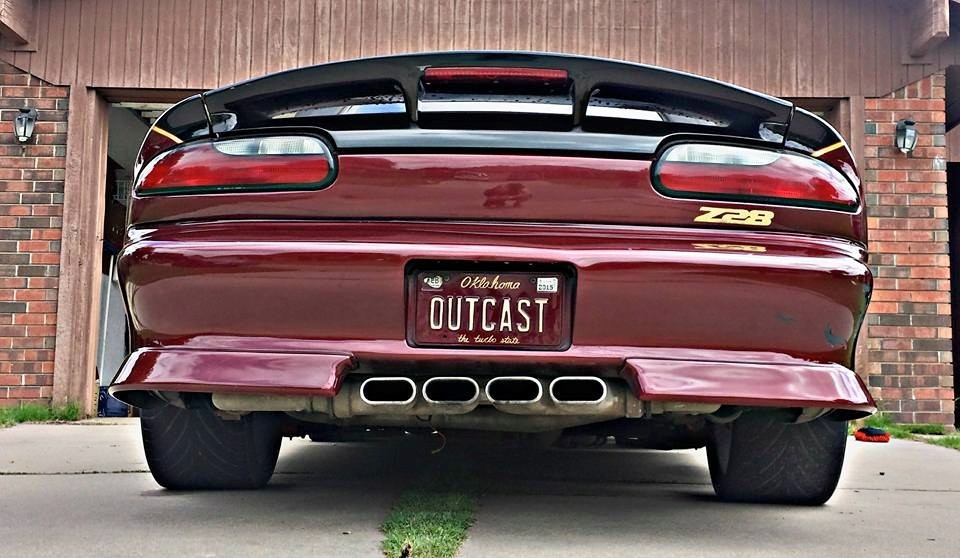

Name:  rear_zpsgi5fszkc.jpg
Views: 7864
Size:  116.1 KB
Old Oct 23, 2015 | 11:22 AM
  #2
Bigtoyz97's Avatar
Registered User

Joined: Aug 2015
Posts: 10
Re: 94 Z-28 Turbo

Nice ride and well done you got there. Got a Gem
