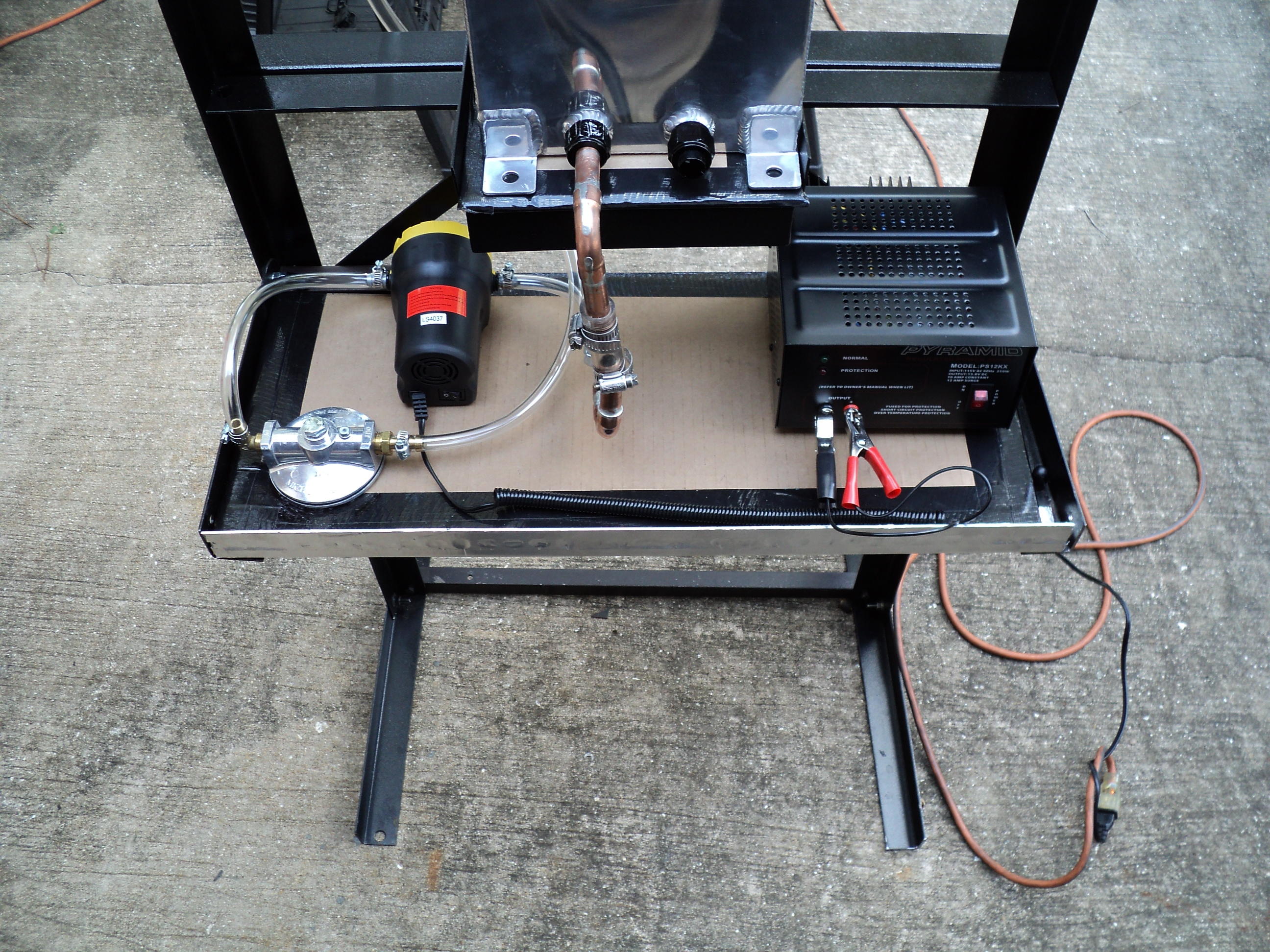

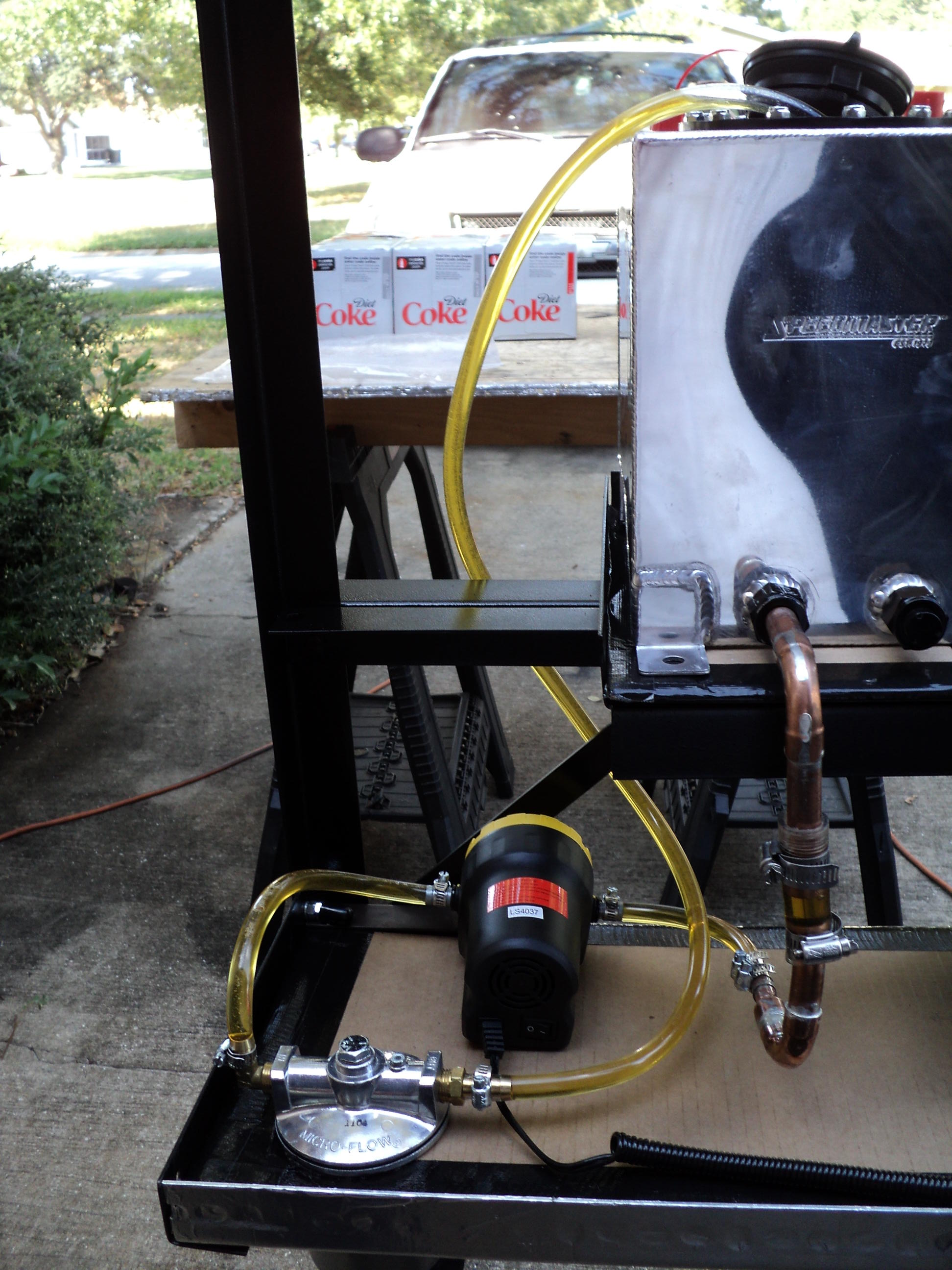

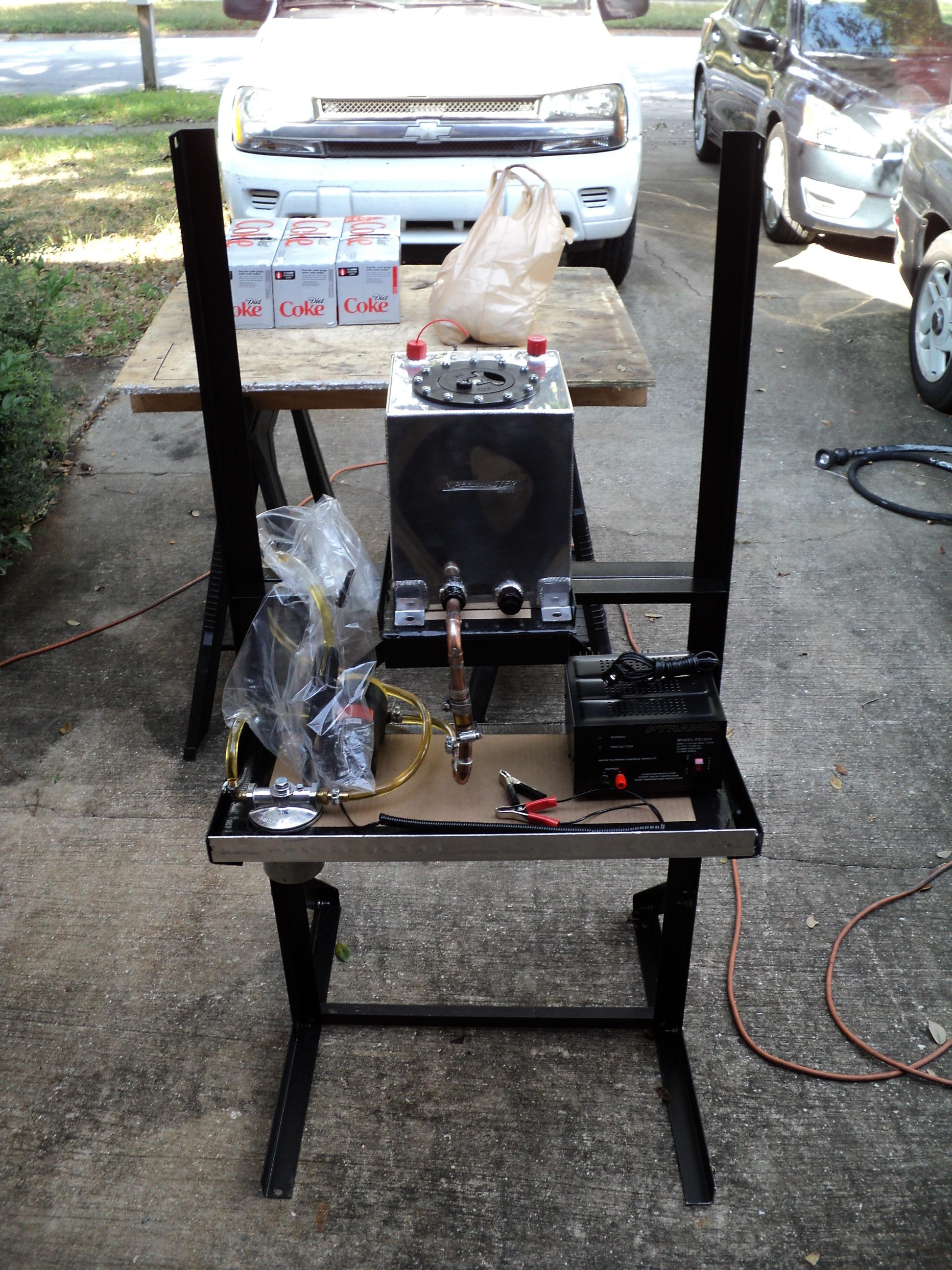

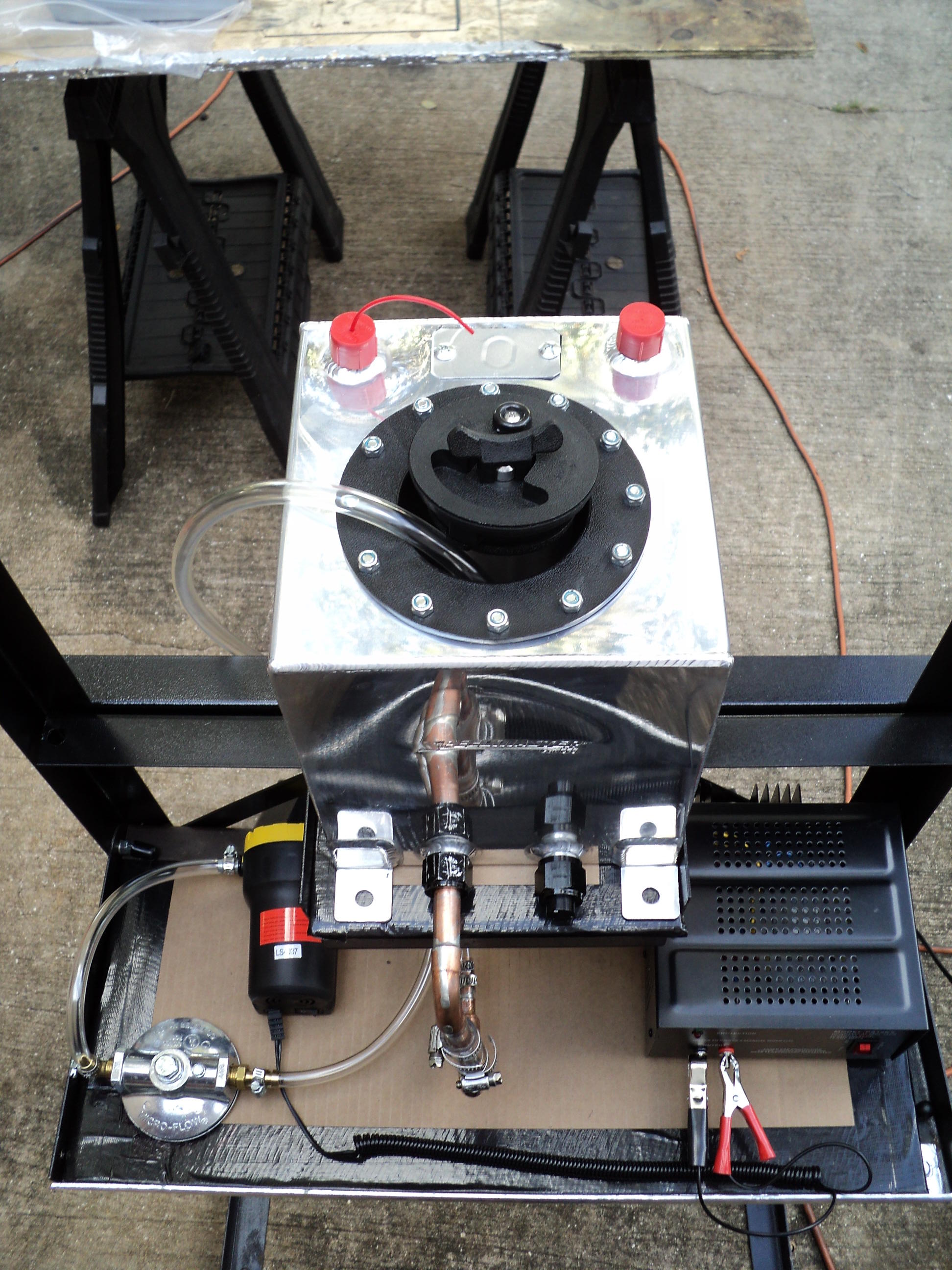

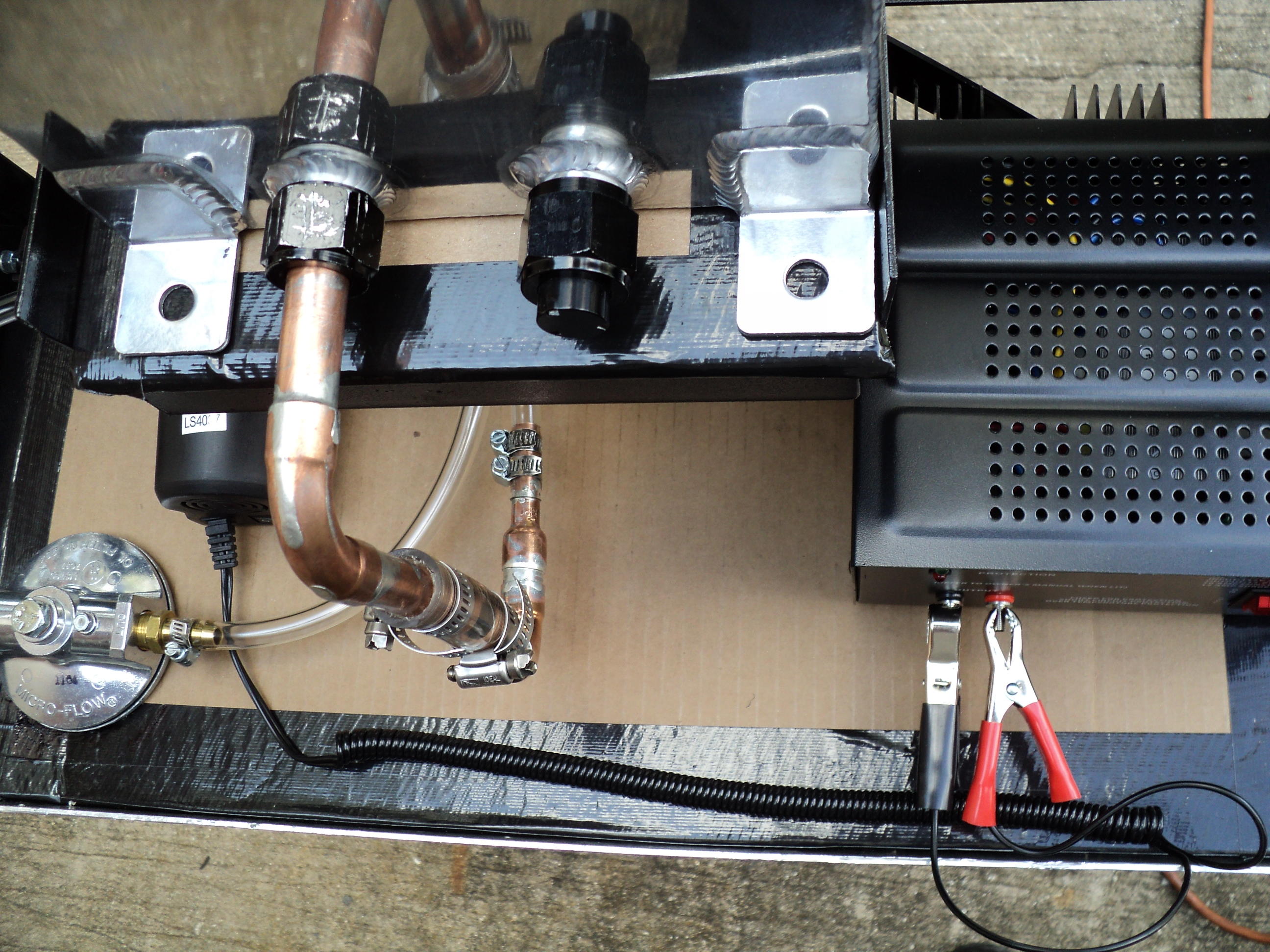

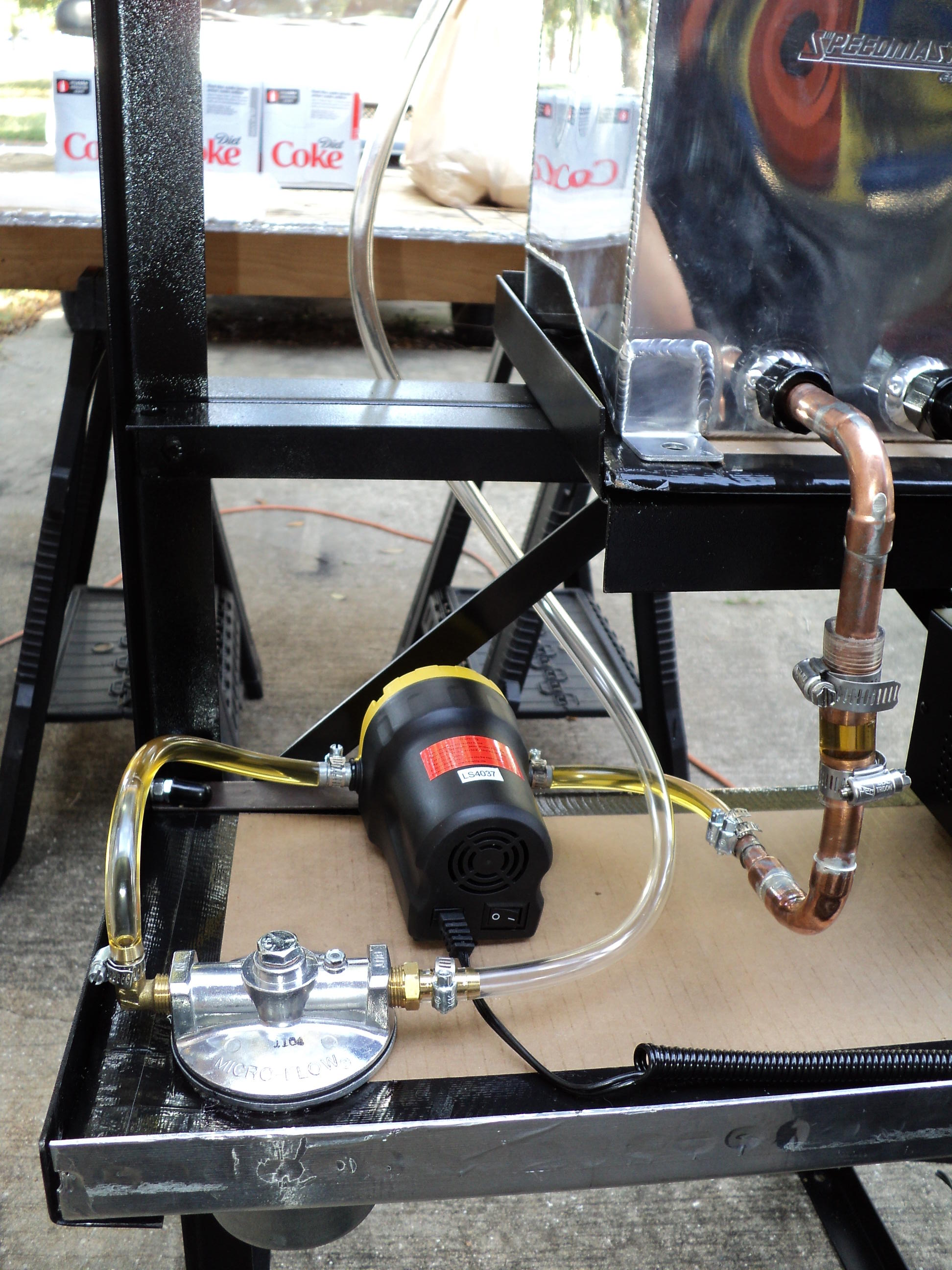

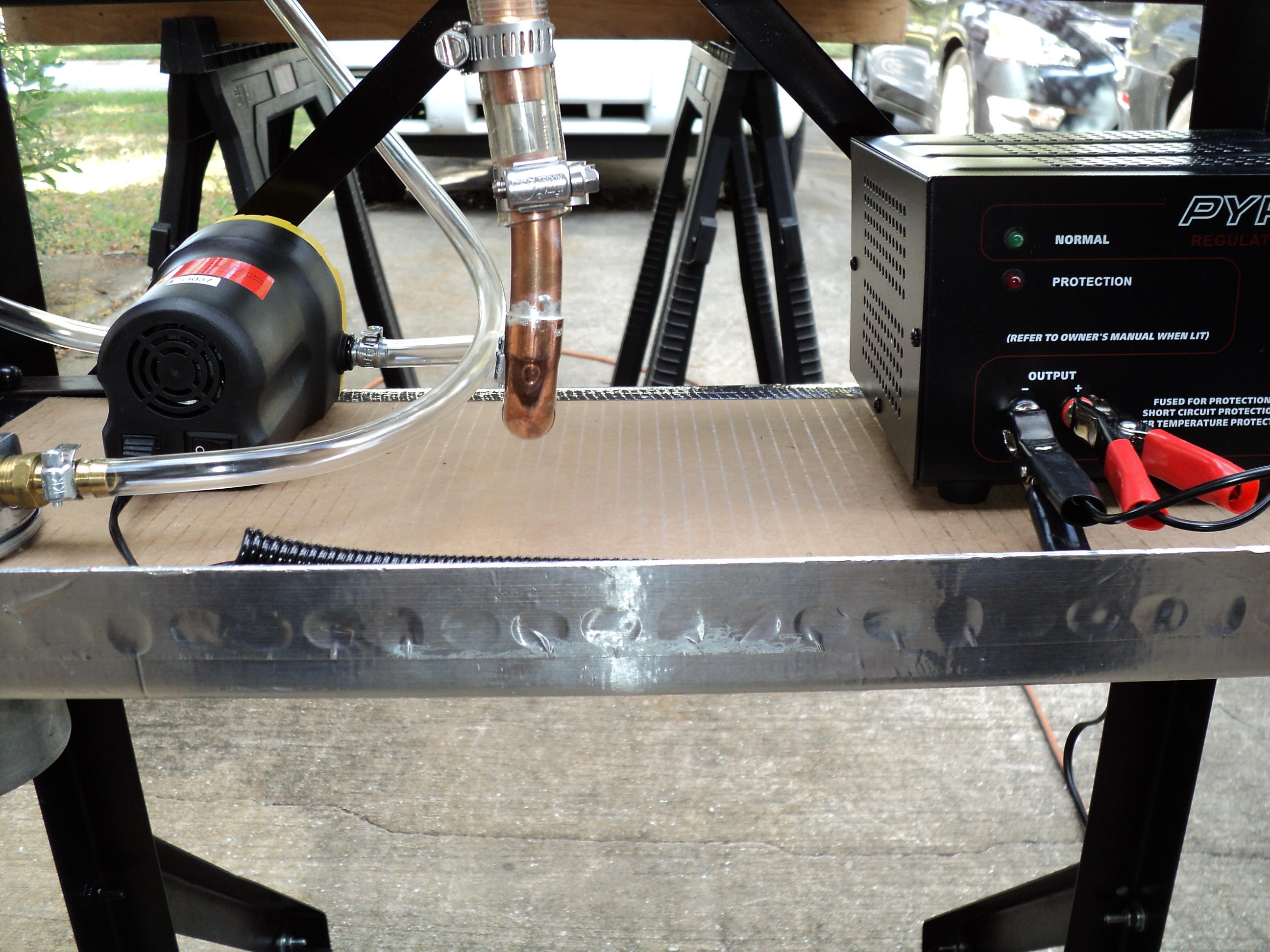

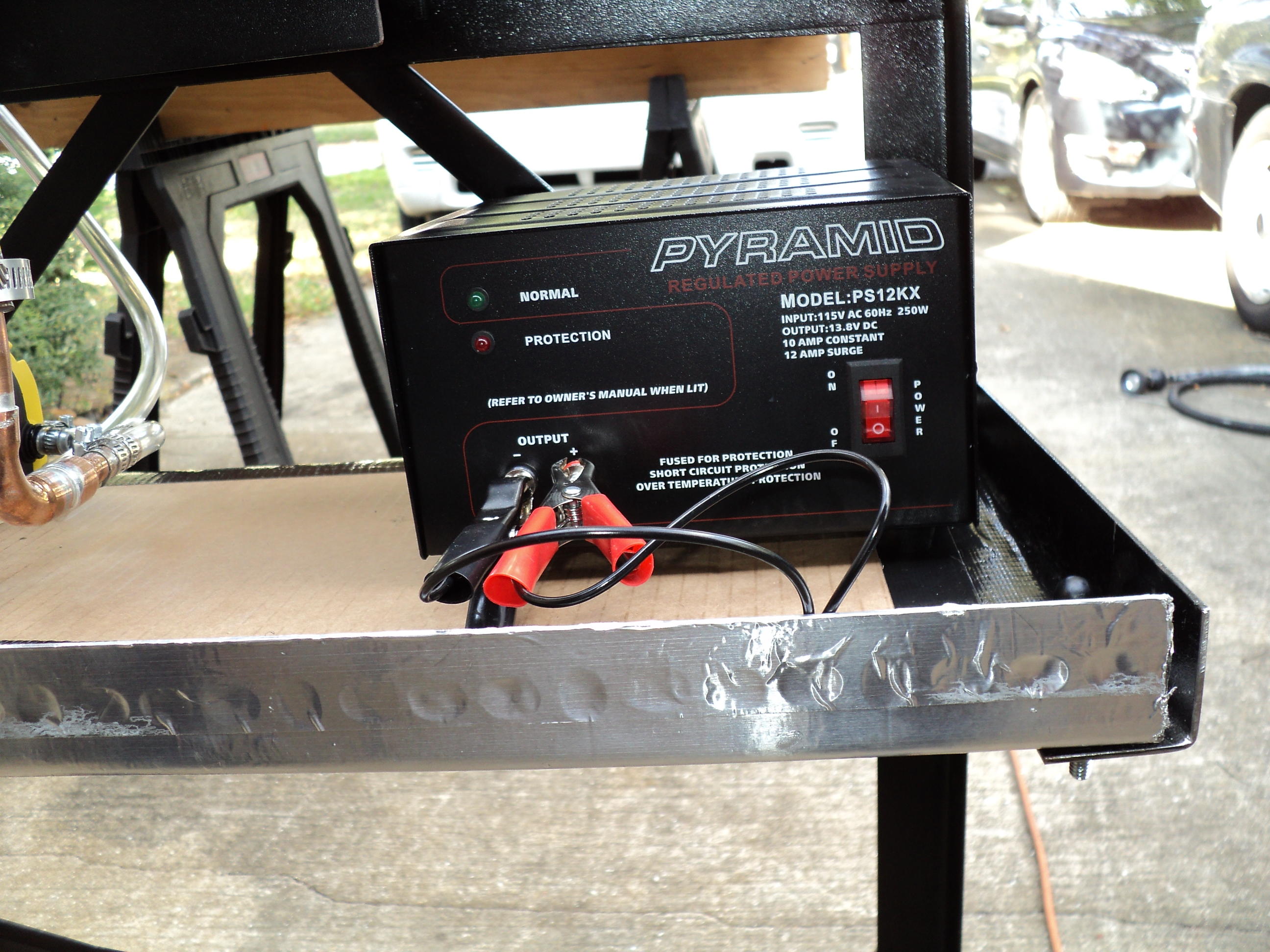

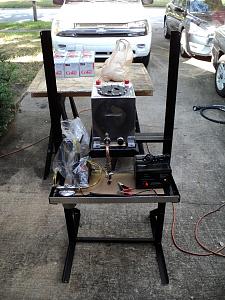

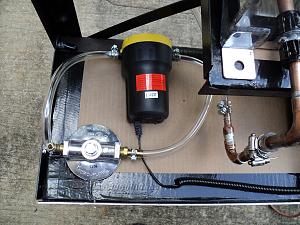

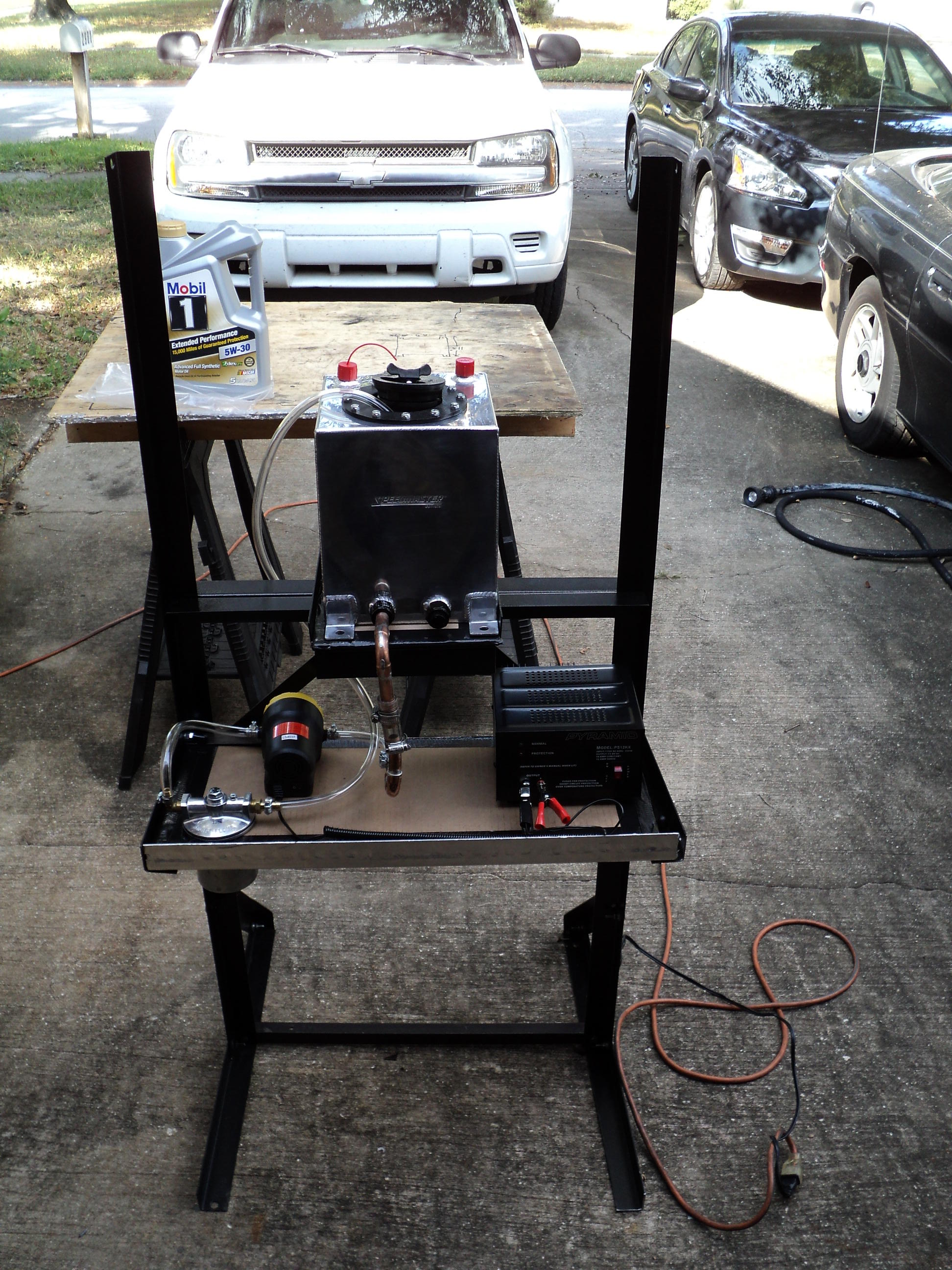

As the OP of this Topic, it has been ages (I know... but rumours of my Death have been Greatly Exaggerated)...since I touched upon the subject of “The Franken-Oiler Machine” as an alternative to having to use the Electric Drill Method on some Early Model V-6 Engines and more particularly to solve the impossible job of pre-oiling the latest crop of engines with hidden Gerotor Oil Pumps. I went through the same Trials and Tribulations I endured (and the readers suffered with) as when I was working on “The FrankInjector Machine” and ultimately… with the same good results in building something that might seem quite over-engineered but which works with such surprising performance and ease of use that all the hard work I put into it was eventually vindicated by what you will see in the attached images.
In a short while… I’ll produce a “Parts and Pieces” list for all of the working components and show some of the sub-assembly building of “The Franken-Framer” superstructure that really came in handy because of its stable and strong design and ease of construction. That part of “The Franken-Oiler Machine” is not absolutely required...but with either metal Washing Machine Adjustable Glides or even with Roller Bearing Wheels mounted on the Four Corners of the device… it makes it easy to roll around after setting up all the “Bits and Baubles and Wands from Olivander’s” like Hagrid told Harry all about on their stroll down Diagon Alley…. and which really “Puts the Music in The Machine” within this Device. By the way… even though I run this off of a very robust 12 VDC Power Supply… it will run just as well via a common 12 Volt Car or Truck Battery. Considering the modest pricing and good availability of the critical components... anyone can build this device and be very pleasantly surprised by its power, reliability, durability and performance.
Anyway… FWIW… Please enjoy:
“The Franken-Oiler Machine” ;>)
Many More Images can be seen here at my Photobucket... Hope this Helps!
http://s557.photobucket.com/user/60d...?sort=3&page=1
In a short while… I’ll produce a “Parts and Pieces” list for all of the working components and show some of the sub-assembly building of “The Franken-Framer” superstructure that really came in handy because of its stable and strong design and ease of construction. That part of “The Franken-Oiler Machine” is not absolutely required...but with either metal Washing Machine Adjustable Glides or even with Roller Bearing Wheels mounted on the Four Corners of the device… it makes it easy to roll around after setting up all the “Bits and Baubles and Wands from Olivander’s” like Hagrid told Harry all about on their stroll down Diagon Alley…. and which really “Puts the Music in The Machine” within this Device. By the way… even though I run this off of a very robust 12 VDC Power Supply… it will run just as well via a common 12 Volt Car or Truck Battery. Considering the modest pricing and good availability of the critical components... anyone can build this device and be very pleasantly surprised by its power, reliability, durability and performance.
Anyway… FWIW… Please enjoy:
“The Franken-Oiler Machine” ;>)
Many More Images can be seen here at my Photobucket... Hope this Helps!
http://s557.photobucket.com/user/60d...?sort=3&page=1
