Fixing LEDs in SS Spoiler 3rd Brake Light

I noticed that the 2 centermost LEDs in my brake light aren't turning on (the rest are fine). Is there a way to fix/replace them, or will I have to get a new brake light. Also, do I have to remove the spoiler to get the light out completely or is there a wire disconnect behind the light?

I'm asking before I go pulling and mess something up. Thanks.
This ad is not displayed to registered members.
Register your free account today and become a member on CamaroZ28.com!
__________________
2002 Camaro Z28 A4
BloodyZ28 is offline   Reply With Quote
Old 03-14-2010, 01:48 PM   #2
Registered User

Join Date: Mar 2010
Posts: 1
I need info on this too, if anyone has experience I'd appreciate it. My light is broken and needs to be replaced.

Thanks
OhOhSS is offline   Reply With Quote
Old 03-14-2010, 04:36 PM   #3
Registered User

Join Date: May 2007
Location: Fort Atkinson, WI
Posts: 329
This is a very common problem with the ss spoiler lights. My 2001 was replaced 3 times when it was under warranty during the first 5 years. 1 time was because some lights were burned out and the other 2 times was because the bolts would pull through the plastic. Dealer told me not to slam the trunk to hard and I told them than I never open it. They had no explanation for me.
__________________
1989 Firebird Formula, 305 TBI, auto, 100% stock
1989 Firebird Formula, 350 TPI, auto, 100% stock
1991 Camaro Z-28, 350 TPI, auto, 100% stock
2001 Camaro SS, LS1, auto, 100% stock
cars3 is offline   Reply With Quote
Old 03-14-2010, 06:46 PM   #4
Registered User

BloodyZ28's Avatar

Join Date: Jan 2010
Location: NYC
Posts: 57
I managed to get an OEM SLP brake light for $40 on ebay, so i'll try taking mine apart when the weather warms up a bit more. 2 of the screws had pulled through the plastic on mine too, is there a way to avoid that happening?

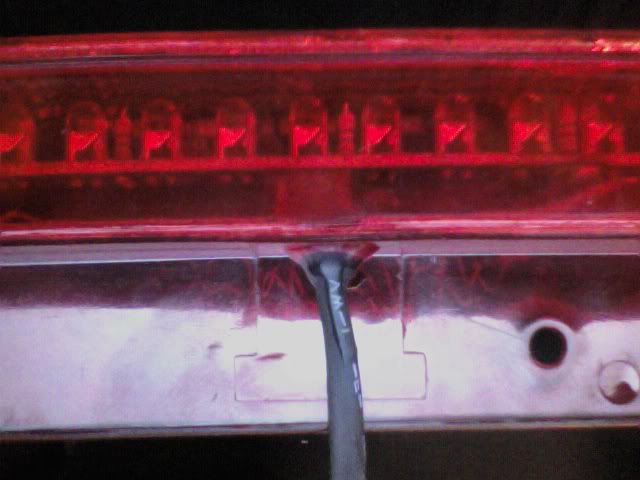

If the LEDs are the only thing that's burned out, i dont see why they cant simply be de-soldered and replaced. heres a really crappy pic i tried taking:
