Post your True Dual setup here

Thought we could make one big thread for true duals and maybe get a moderator to sticky it.

Keith from Extreme Exhaust in Winnipeg made mine for me.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

A big thanx to Keith from Extreme Exhaust who was up till 1am last night fabricating the exhaust.

Its a 93 Camaro with billet custom made centre exit tips and SLP SS bumper. All mandrel bent.

Videos:

http://members.shaw.ca/velvet_hammer/Idle.wmv

http://members.shaw.ca/tallc00l1/Drive.wmv
This ad is not displayed to registered members.
Register your free account today and become a member on CamaroZ28.com!
__________________
'93 Z28 (awaiting a new powerplant)
'06 Lexus IS350 Pics of my 3" duals My T-top conversion guide
R.I.P. Adam Reams aka Reamo04
Gripenfelter is offline   Reply With Quote
Old 04-17-2008, 01:37 PM   #2
Registered User

Join Date: Feb 2008
Posts: 49
Looks like really nice, but what kind of ground clearance do you have with those mufflers? Also, what kinda mount do you have on your driving clip? Thats pretty cool
greenday3437 is offline   Reply With Quote
Old 04-18-2008, 01:01 AM   #3
Registered User
Premium Member

Gripenfelter's Avatar

Join Date: Jul 1999
Location: Winnipeg, Manitoba, Canada
Posts: 3,666
Garage
Send a message via ICQ to Gripenfelter Send a message via MSN to Gripenfelter
Quote:
Originally Posted by greenday3437 View Post
Looks like really nice, but what kind of ground clearance do you have with those mufflers? Also, what kinda mount do you have on your driving clip? Thats pretty cool
Mufflers clear the highest speed bumps. I scrape them a bit on my parents' very steep driveway. Other than that no where else in the city. My LCA relocation brackets are lower than my mufflers.

Mount is for a Bullet cam. http://www.bulletcam.com/

I bought it from Fasttoys.

http://fasttoys.net/shop/index.php?c...ed0e95173d6d47
__________________
'93 Z28 (awaiting a new powerplant)
'06 Lexus IS350 Pics of my 3" duals My T-top conversion guide
R.I.P. Adam Reams aka Reamo04
Gripenfelter is offline   Reply With Quote
Old 04-18-2008, 03:59 AM   #4
Registered User

Join Date: Jan 2001
Location: Orlando,Fl
Posts: 2,906
Send a message via AIM to '94 Bad A Z28
My 3" True Duals:


Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.
__________________

AIM: NX LT1 Z28
CFFB #54 - '00 Maxima GLE D.D. - '94 Z28 A4 Not stock.
NITROUS!!! Is it in you... yet?
http://www.nitrousoutlet.com/
'94 Bad A Z28 is offline   Reply With Quote
Old 04-23-2008, 08:07 AM   #5
Registered User

teke184's Avatar

Join Date: Sep 1998
Location: US 1 Mile Marker 52 in the Florida Keys
Posts: 8,337
Send a message via AIM to teke184
here's mine
started with a universal Xpipe from summit...3" all the way...with magnaflow 4x9s

did all the fab work on my back in the driveway with handtools. then had it welded up at a shop.

straight pipes:

with magnaflows...same camera position...just slipped the mufflers on.


drivers flange so it would mate to the flowtech headers (they tuck up high)


whole setup


from behind...drivers side hangs a bit lower since i had to have it welded in a hurry...Hurricane Wilma was coming in 3 days!!
__________________
ARREST-ME RED 99 Z-28, M6 - TSP Torquer V1 (233/233 .589" 112*), HS rockers, Flowtech LTs, 3" TDs, magnaflow 4x9s, FAST 90/90 ported, Mez EWP, 160 stat, SSRA, TSP lid, GMS maf ends, ASP pulley, Hurst w/LSS, Spec4, Fidanza FW, SS brake lines, BMR lca w/ brackets, phb, stb, 32/21mm swaybars, sfc, ZR1s
408.6 hp, 379.5 torque

Last edited by teke184; 04-23-2008 at 08:11 AM.
teke184 is offline   Reply With Quote
Old 04-23-2008, 09:27 AM   #6
Registered User

Join Date: Mar 2005
Location: Memphis, TN
Posts: 1,075
Send a message via AIM to luckyou03
Click the image to open in full size.

My detailed setup: http://www.lt1engine.com/tech/how-to...duals-exhaust/

Last edited by luckyou03; 05-15-2008 at 01:00 AM.
luckyou03 is offline   Reply With Quote
Old 05-07-2008, 08:30 PM   #7
Registered User

Join Date: Nov 2007
Location: Raleigh, NC
Posts: 249
Ok here's mine. I've got Pacesetter longtubes going into hi-flow cats (not gutted, sorry to disappoint), into a custom x-pipe and dumped in front of the axle through a couple of Magnaflow 4X9's with turndowns. A shop in the Raleigh area did it for me for a decent price and it turned out sounding really good I think.

This one shows the headers hooking up to the cats I believe...
Click the image to open in full size.

Annnnd this is a little deceiving of the ground clearance, but it isn't too bad...3" pipes all the way..
Click the image to open in full size.

This is the same side, from a slightly lower angle...
Click the image to open in full size.

And here's the dumps!
Click the image to open in full size.

Lemme know what you think
__________________
Black 2000 Camaro Z28 M6
PRC Stage 2.5 5.3L heads, Torquer V2, FAST 92/92, SLP CAI, Pacesetter LT's, 435rwhp/389rwtq
2006 Suzuki SV650

Last edited by jmmullin; 05-12-2008 at 11:26 AM.
jmmullin is offline   Reply With Quote
Old 05-14-2008, 10:27 PM   #8
Registered User

Join Date: Nov 2007
Location: Raleigh, NC
Posts: 249
Here's a couple more for anyone interested!

Click the image to open in full size.

Click the image to open in full size.

Here's a sound clip!

http://s248.photobucket.com/albums/g...t=DSCN0606.flv
__________________
Black 2000 Camaro Z28 M6
PRC Stage 2.5 5.3L heads, Torquer V2, FAST 92/92, SLP CAI, Pacesetter LT's, 435rwhp/389rwtq
2006 Suzuki SV650
jmmullin is offline   Reply With Quote
Old 07-23-2008, 02:57 PM   #9
Registered User

Join Date: Aug 2007
Location: Upland, CA
Posts: 83
just did up mine yesterday...

Props go out to Speedway Muffler in Upland, CA. Got 2.5" pipeto about 2/3 of the way down into a pair of resonators and then into 1 chamber Flowmaster Racing mufflers and then 3.5 inch chrome tips. Sounds much quieter than my 80 Series Flomaster that I had, but it sounds a lot more muscle and less loud

camaron

ps how can I post pics?
__________________
2001 Camaro SS Convertible A4: Bright Rally Red SLP Build #448, Modified on 02 August 2000

Future Plans: 2010 Camaro SS M6, black w/ white stripes, 2SS trim , GMPP Cat Back...right around $25,000 on Autotrader. We'll see in real life
2001SS4Doc is offline   Reply With Quote
Old 11-11-2008, 08:01 PM   #10
Registered User

bombebomb's Avatar

Join Date: May 2006
Location: Ohio
Posts: 1,882

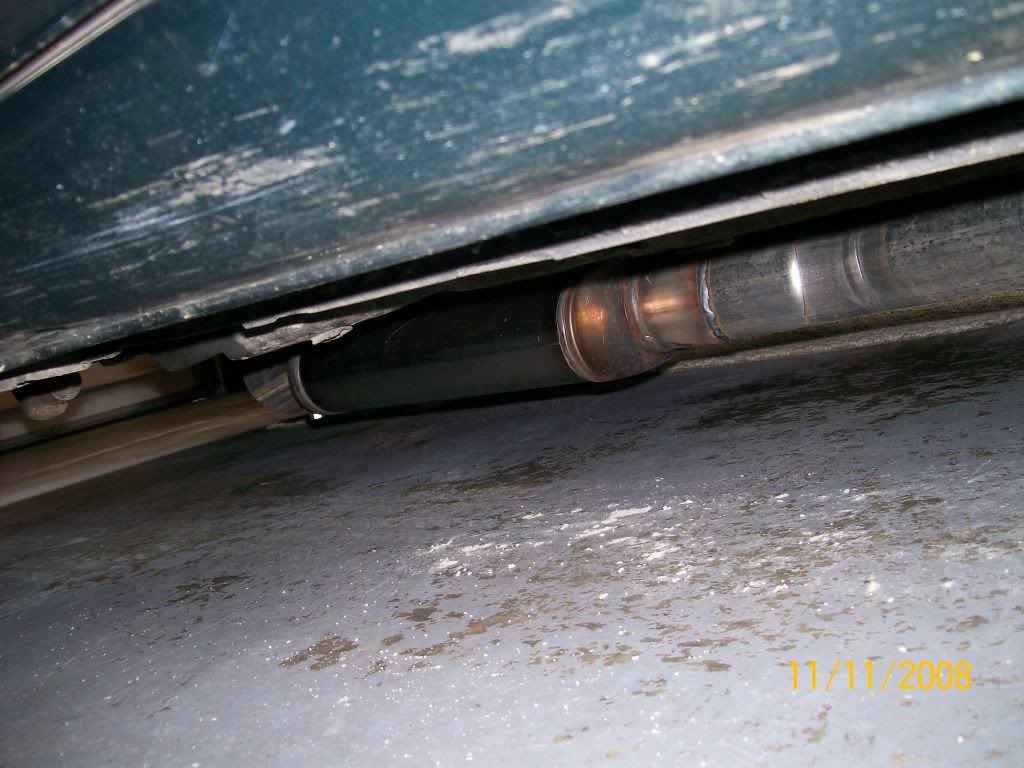

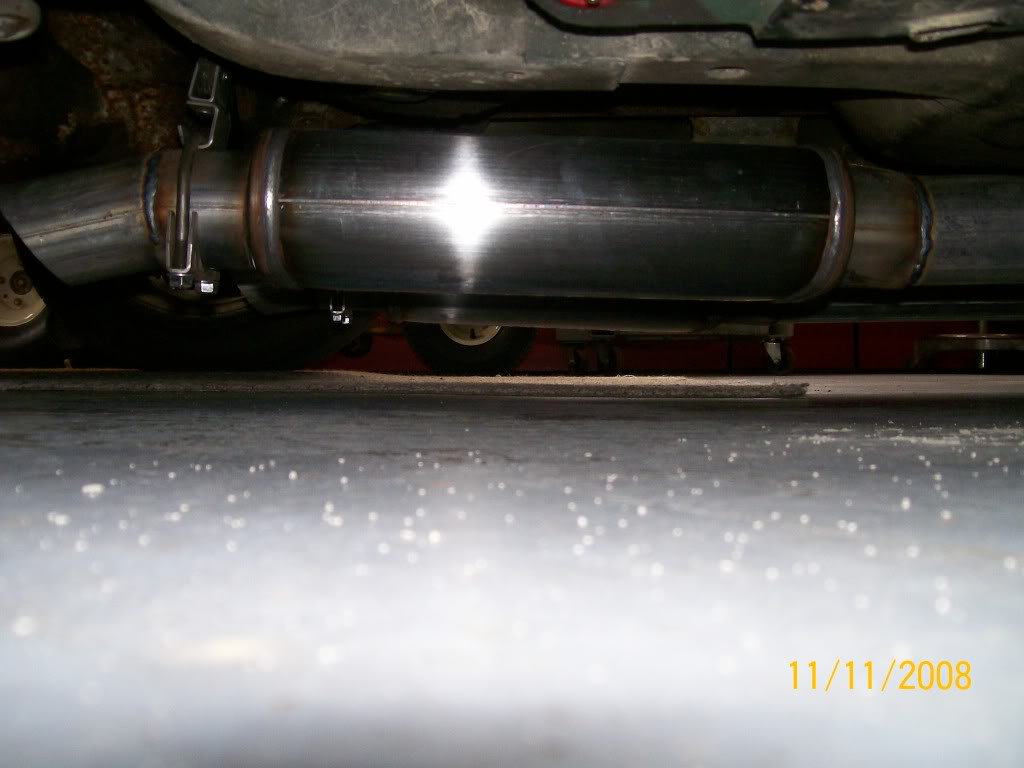

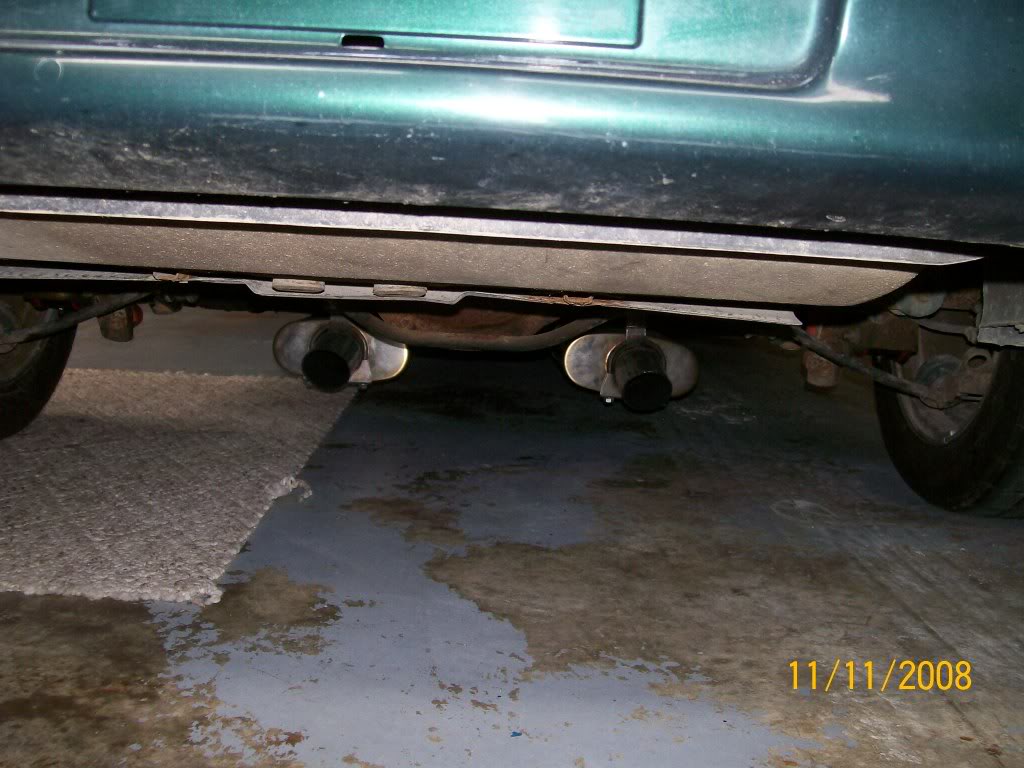

No H or X pipe in this set up. Id say we have about 3 inches of clearence.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
http://s304.photobucket.com/albums/n...t=100_0599.flv

Sorry about the sound, its hard to get a camera to do good on an exhaust when so much air is blowing in the mic. THe lower your volume the better you can hear it. Sorry about the bright reverse light also, I put it in R so people could hear what it would sound like at a stop light etc. I think I took it up to 6500~ rpms. Appears to be rich at WOT.
__________________
94' z28 lt1 383, A4, 160 t-stat, CAI,Spohn LCA's,Nittos 555R,3.73's,Tuned, e-waterpump, TD's magnaflow, Pacesetter LT's, Stock Heads, Compstar 6"rod, compstar 3.75 crank,JE pistons,lunati cam, 1.6pro mag Nitrous hardend rings, 4bolt splayed. 12.2 @114

Last edited by bombebomb; 12-01-2008 at 12:21 PM.
bombebomb is offline   Reply With Quote
Old 04-05-2009, 07:55 AM   #11
Registered User

Join Date: Feb 2002
Location: Lousiana
Posts: 1,536
Summit 2.5 "universal x-pipe system" Direct bolt on to my Jet Hot Lt's. No cutting at all. Two hangers from Autozone bolted right up the the two holes for the rear seat belts. I also used some turn downs that I bought from Jegs which are not show in the pics. I clamped it all together then drove it to a muffler shop to have it welded for $50.00.
I think I have about $300 into it. Hard to beat.

__________________
'94 Z28 Blk Vert. A4->M6, AS&M CAI, AS&M 54mm TB, CC503 XE 224/230 (.553/.561 lift w/ 1.65 RR's), LE Stage 3 Heads, 30lb SVO injectors, JetHot LTs, X-pipe Duals, Pro 5.0 Shifter/Short stick, Mccleod 7500rpm single disc w/ Ram Alum flywheel, 3.42 gears, EFI Connections 24x conversion, UMI 3 pt subframe connectors, UMI lower control arms

Last edited by PoorMan; 04-05-2009 at 07:59 AM.
PoorMan is offline   Reply With Quote
Old 04-22-2009, 08:52 PM   #12
Registered User

Join Date: Apr 2000
Posts: 1,445
I'll edit this post and add pics one I finish painting the tailpipes flat black.

This exhaust is 3" Mandrel bent, over the axle with X-pipe and Hooker Aerochamber mufflers.
Excellent ground clearance and sound.
Driver's side muffler is in the stock location, passenger side is between TTop and Spare tire wells. (2" x 3" BFH work required)

Materials:
- 4 Dynomax/Hooker 3" Mandrel U bends (I have 4 left over in my for sale thread)
- 1 Jegs Universal 3" X-pipe kit
- 2 Hooker Aerochamber 3" in/out Mufflers

Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.

Additional Pics at -> http://s38.photobucket.com/albums/e1...ual%20Exhaust/
Idle/Rev Vid at -> http://s38.photobucket.com/albums/e1...t=MOV001_1.flv
__________________
James Montigny
1993 Pontiac Firehawk #018 - Forged 383, LE-Dart Heads, Hyd Cam, 24x conversion
http://www.cardomain.com/ride/2297151
James Montigny is offline   Reply With Quote
Old 04-23-2009, 10:23 AM   #13
Registered User

Join Date: Aug 2005
Location: Kantuckee Yo'
Posts: 4,407
James, Awesome work man.
Does it have any rasp in the 2K -3K RPM band like what we get with 3" single and the y-pipe?
wrd1972 is offline   Reply With Quote
Old 04-23-2009, 10:39 PM   #14
Registered User

Join Date: Apr 2000
Posts: 1,445
Quote:
Originally Posted by wrd1972 View Post
James, Awesome work man.
Does it have any rasp in the 2K -3K RPM band like what we get with 3" single and the y-pipe?
In the vid, you hear me rev to about 3500, pause, then continue on up to 6000 or so.
No real rasp that I can tell, although it would be hard to tell with this cam
__________________
James Montigny
1993 Pontiac Firehawk #018 - Forged 383, LE-Dart Heads, Hyd Cam, 24x conversion
http://www.cardomain.com/ride/2297151
James Montigny is offline   Reply With Quote
Old 06-29-2009, 07:03 PM   #15
Registered User

Join Date: Aug 2005
Location: Kantuckee Yo'
Posts: 4,407
New video posted below

I have finally finished the true duals project for my 1995 Z28. The entire system is stainless steel and was made from Magnaflow mandrel bent pipes.

Here are the specs:
Flowmaster 3" to 2.5" reducer cones
Magnaflow stainless (5) J-bends, (4) L bends and (1) 45 degree bend
Woolf aircraft (2) 2.5" ultra tight radius L bends
Magnaflow dual in/out (internal X) muffler
Magnaflow X-pipe
Magnaflow stainless dual oval tips
Dynomax stainless cutouts
QTP electric cutouts
Lots of stainless Accu-seal clamps

I designed the cutout pipes to be easily removed and replaced with catalytic converters should the want or need ever arise. Takes about 30 minutes to do this. Also the whole thing can be easily removed rather easily just like a catback.

All pipes are stainless MIG welded and ground smooth for a seamless look. I polished the rear pipes exiting the muffler to a very shiny finish as well.

The exhaust sound is deep with absolutely no signs of rasp, popping or machine gun sounds in the 2K RPM range like what I had with the old Borla catback and ORY pipe. The sound volume at idle, as well as WOT, is similar to any other catback. Definitely not overly loud unless you open the cutouts. Maybe this is due to the Magnaflow X-pipe up front and the internal X-pipe in the muffler. The exhaust waves should certainly be balanced with this setup.

Ground clearance is outstanding with the lowest point being ~5" off the ground. This is on the pipes just before they go over the axle. I have yet to bang a pipe.

I also managed to reuse all the factory exhaust hanger points to secure the new system. I only had to custom make one new hanger, just in front of the axle as well as the pair at the tips. There are also stainless O2 bungs welded into each reducer for easy hookup to the wideband O2 at the dyno.

Thanks to everybody who offered help and advice with this project. I could not be happier with the final results.:chug:

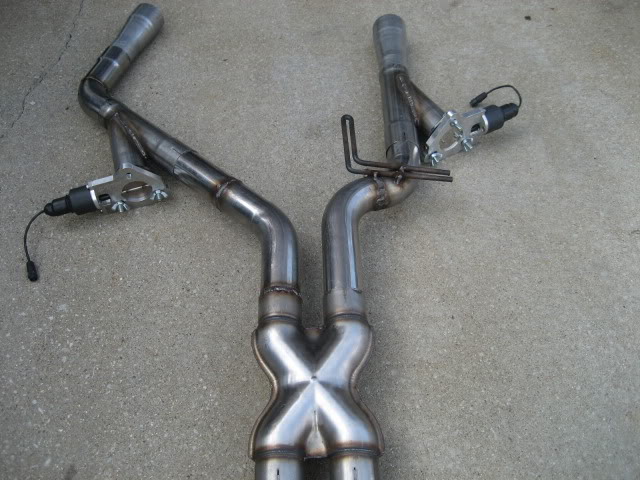

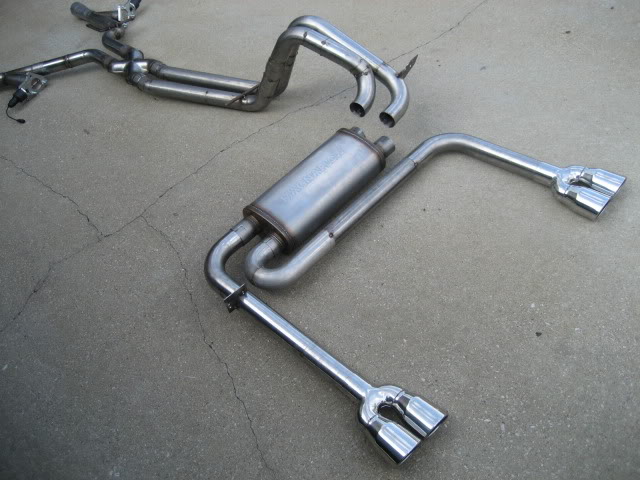

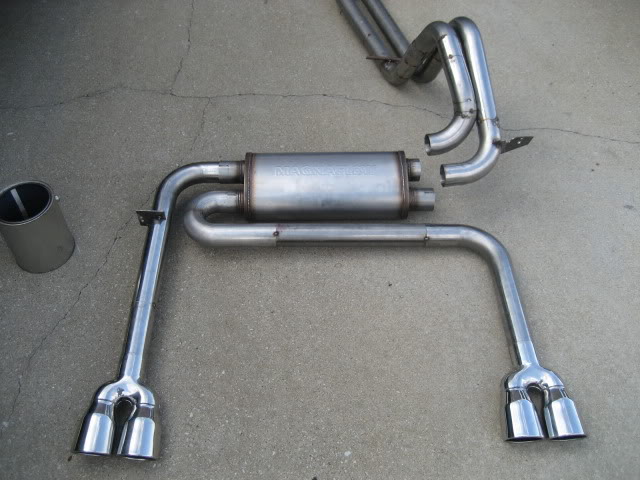

Here are the pics of the system uninstalled:

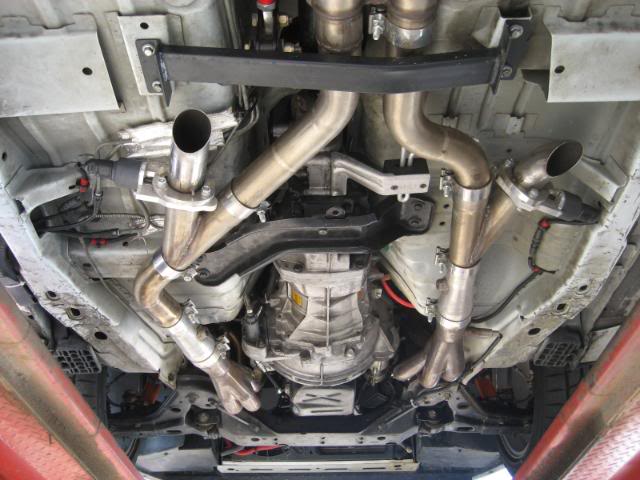

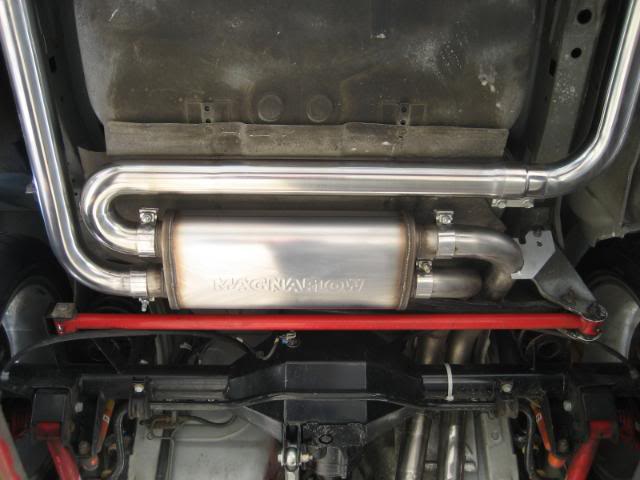

Here are some installed pics:

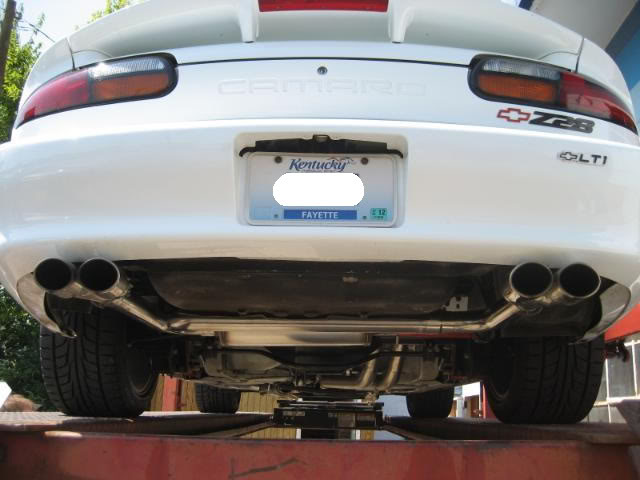

Here is a shot from behind:


Click below for video:

Last edited by wrd1972; 02-17-2011 at 08:35 PM.
wrd1972 is offline   Reply With Quote
Old 06-29-2009, 07:03 PM

Reply Post New Thread

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -5. The time now is 01:19 AM.


Powered by vBulletin® Version 3.8.6
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
Garage Plus vBulletin Plugins by Drive Thru Online, Inc.
Copyright © 1996-2013 CamaroZ28.Com. All rights reserved.
